– 15 –
5.7 If platforms are being used to create a deck the entire outer edge of the deck must be guarded.
5.7.1 Installation of the guards at a corner is the same as turning into a door at the top of the
system. Refer to FIG. 22 and FIG. 23.
5.7.2 Installation of the guards in a straight run is similar except that only one guard section & post
are needed so the unused tab brackets on the post should be oriented to the outside of the
deck & capped (same as FIG. 28).
5.8 Install plugs in the top of all open guard posts.

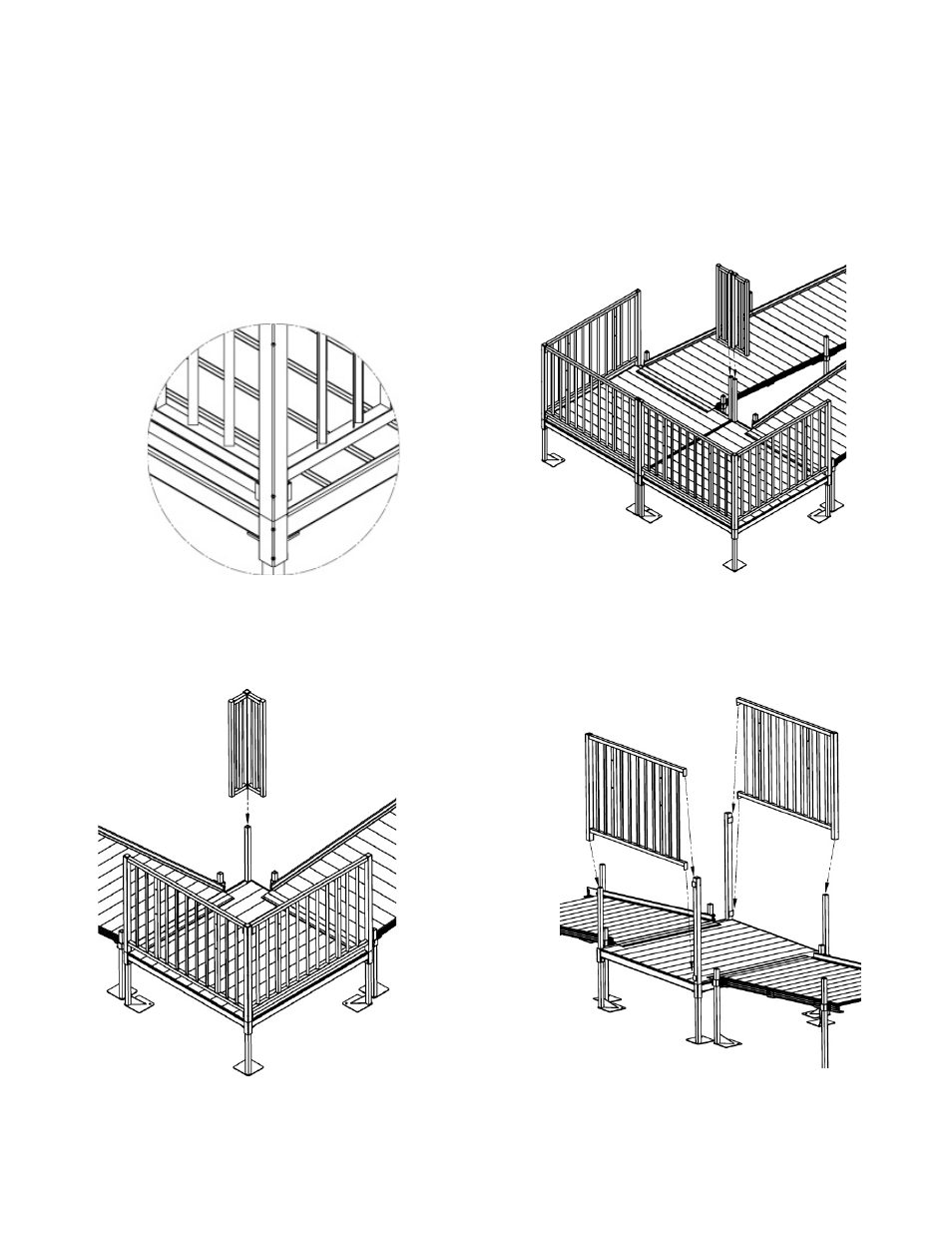

FIG. 25 FIG. 26
FIG. 27 FIG. 28
