System Tab

SONET/SDH Application

535

Default Test Preferences

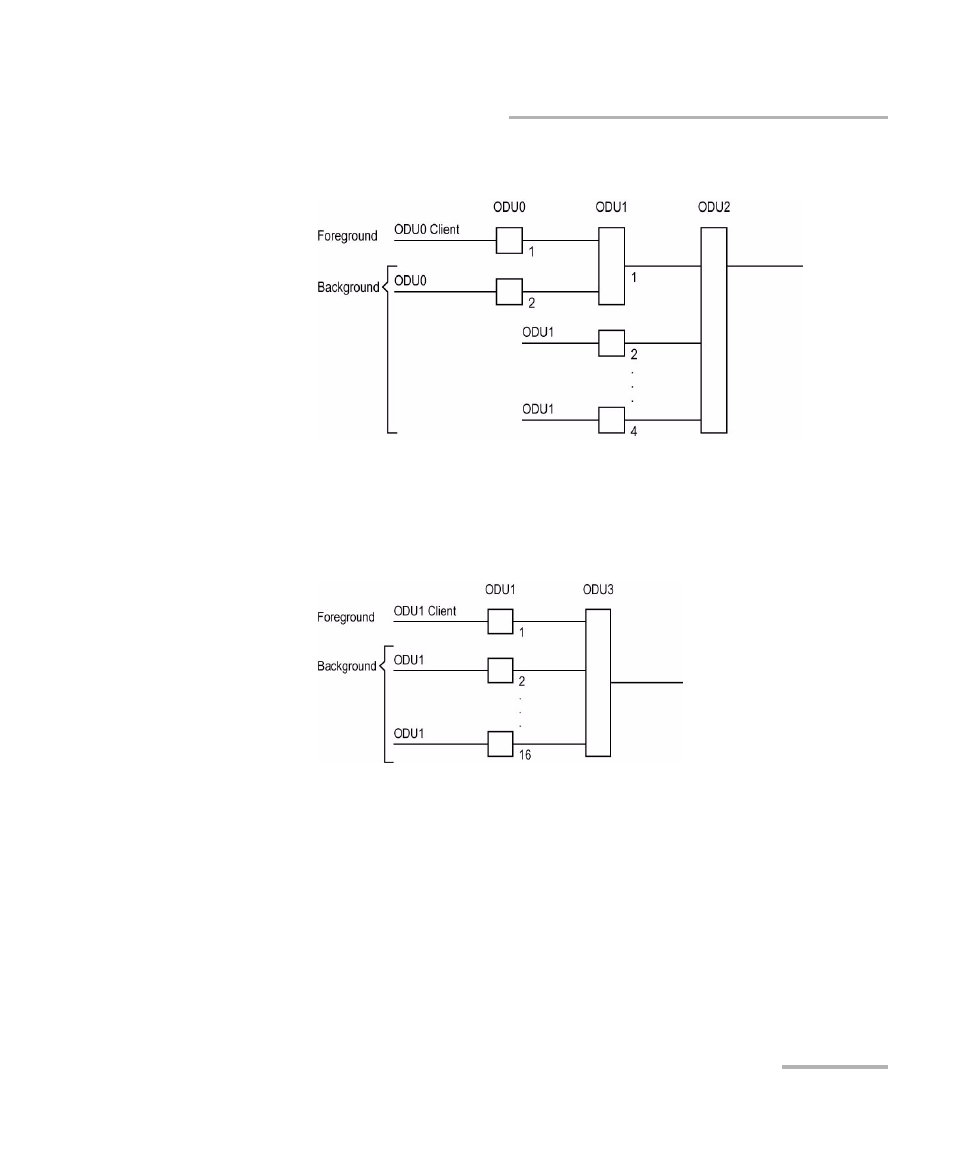

For ODU2 background traffic (ODU0 client in ODU1):

The above example shows that ODU2 that contains ODU0 in ODU1
foreground traffic uses ODU0 background traffic. The remaining
tributaries use ODU1 background traffic.

For ODU3 background traffic (ODU1 client):

The above example shows that ODU3 that contains ODU1
foreground traffic uses ODU1 background traffic.
