Analyzing Traces with the Bidirectional Analysis Application (Optional)
OTDR
239
Setting General Parameters
the gridlines: You can display or hide the grid appearing on the graph’s
background. By default, the gridlines are displayed.
the graph background: You can display the graph with a black (invert
color feature) or a white background. By default, the background is
white.
Trace display mode: You can choose the way the application will
display traces on-screen and in reports. The available choices are:
Complete Trace: to display the whole trace and full acquisition
distance.
Span: to display the trace from the span start to the span end.

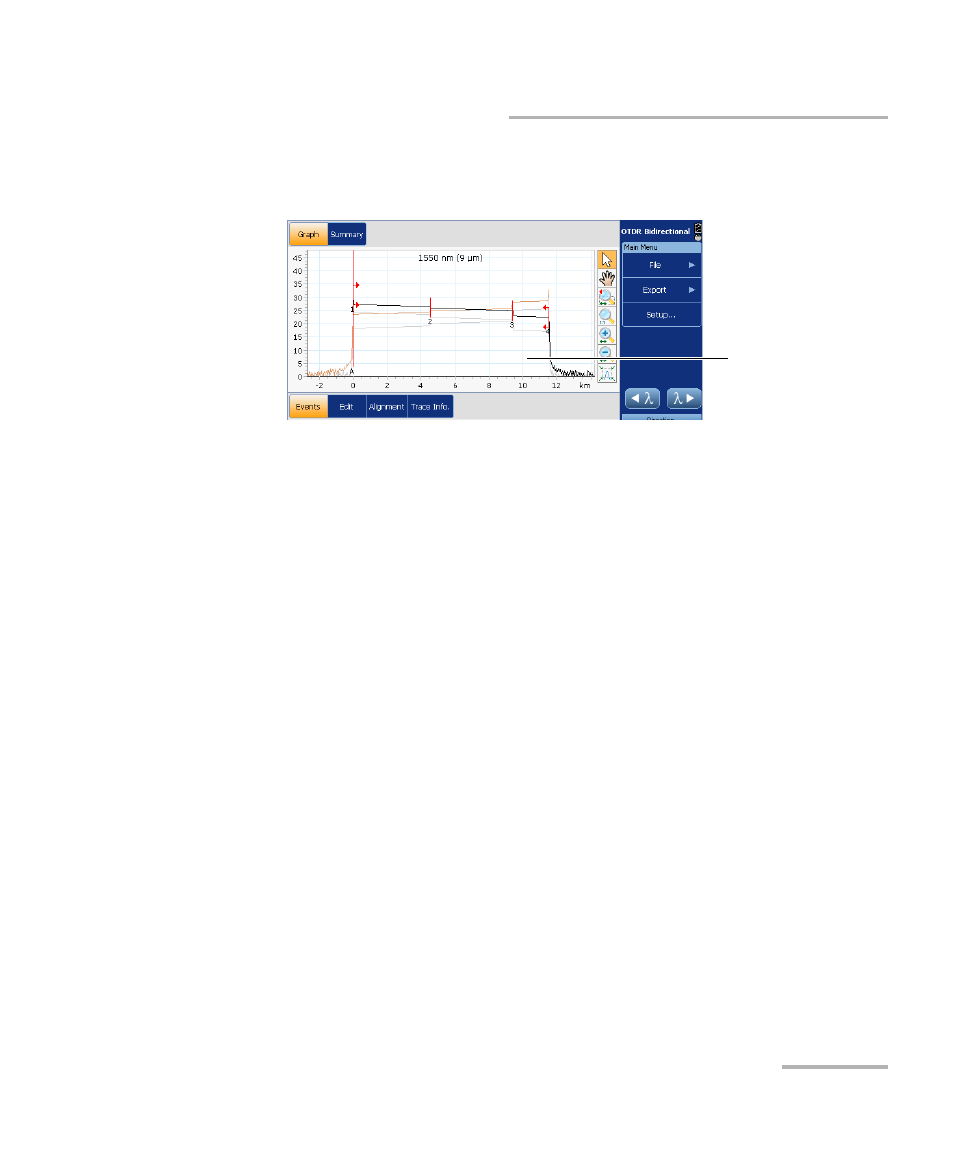

Gridlines displayed
