Displaying traces and bidirectional measurement – EXFO FTB-700 for FTB-1 User Manual
Page 208
Analyzing Traces with the Bidirectional Analysis Application (Optional)
200
FTB-700 Series
Displaying Traces and Bidirectional Measurement
Displaying Traces and Bidirectional
Measurement
You can view, in turn, the bidirectional measurement as well as the
unidirectional trace files. When you create a bidirectional measurement
using multiwavelength files, you can also navigate through the different
wavelengths.
To switch from one direction to another:

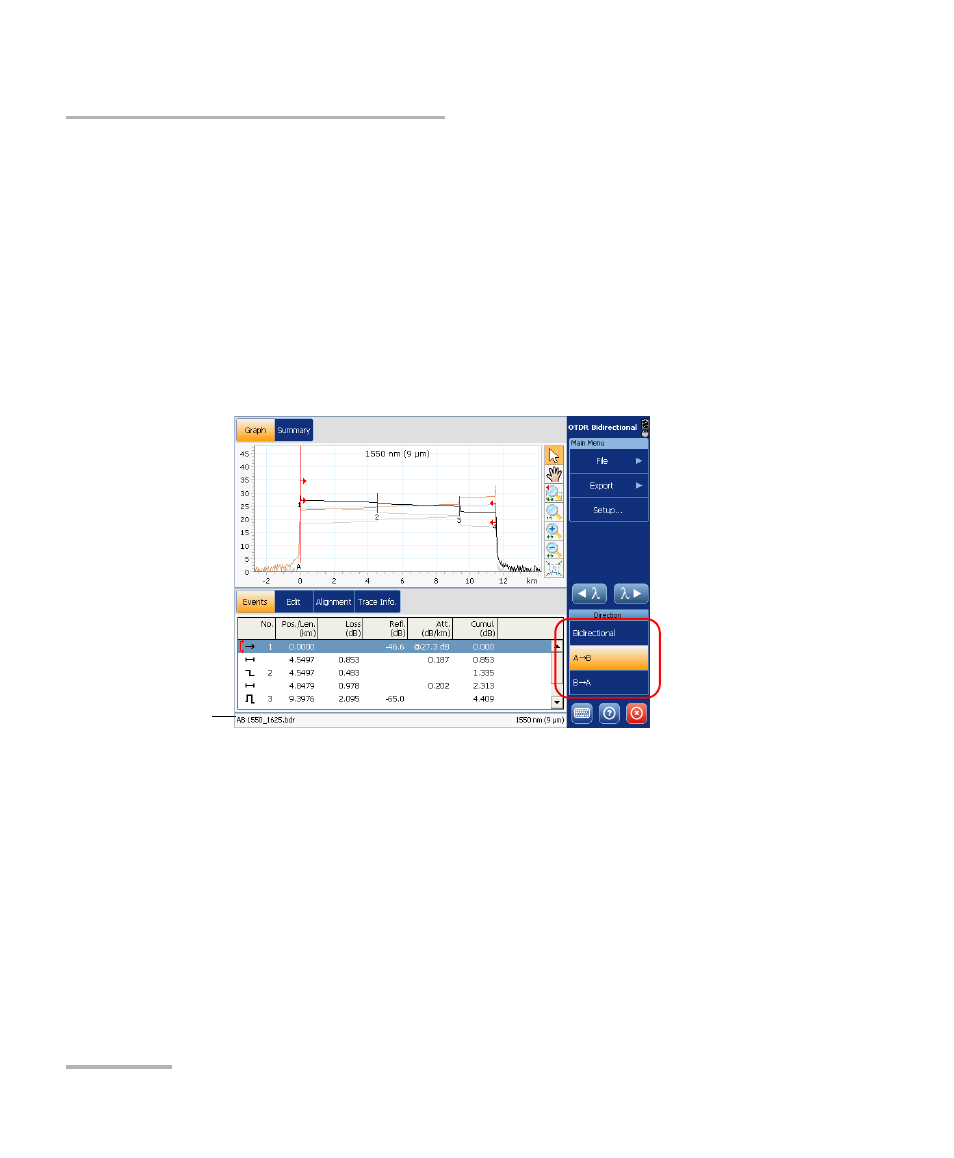

From the main window, under Direction, select the desired direction.
