Managing Results
OSA/OCA
203

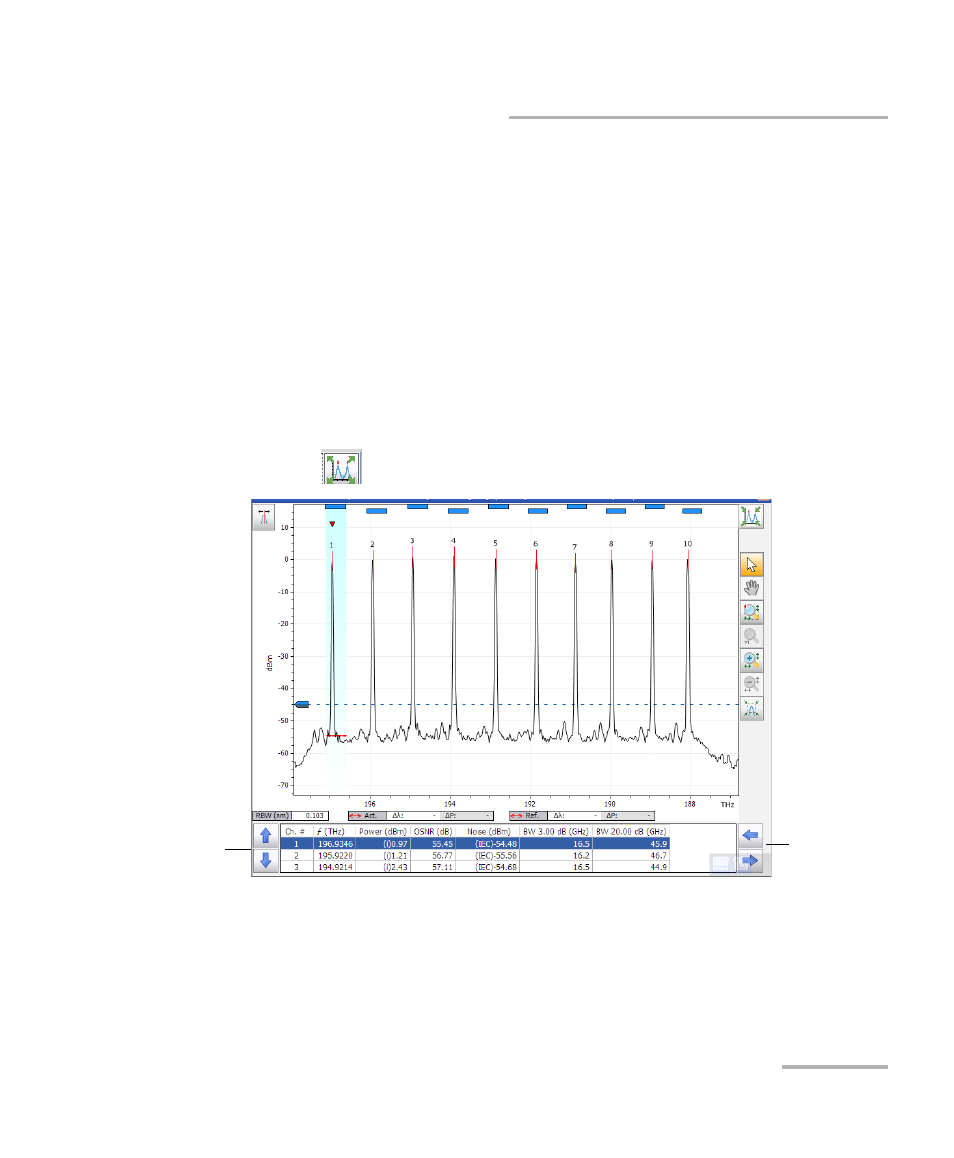

Viewing WDM Graph in Full-Screen Mode
Viewing WDM Graph in Full-Screen Mode
The full-screen mode allows you to see the WDM graph, including the
markers, using the whole screen of your unit. It also displays three lines of
results.
If you have only an active trace, the results show three channels. If you
have an active trace and a reference channel, you will see the results for
one channel.
Note: This feature is not available for the OCA module.
To display the trace in full-screen mode:
Use the
button located on the upper right-hand section of the graph.
To change
channels
To view other
channel
results
