Channel results tab – EXFO FTB-5230S Optical Spectrum Analyzer for FTB 200 v2 User Manual
Page 188
Managing Results
182
FTB-5230S/-OCA
Managing WDM Test Results
Channel Results Tab
The application allows you to view the complete information about the
parameters measured for the selected channel. This is also where the
pass/fail verdict for thresholds are displayed. If the verdict is fail for any
parameter, its value will appear in red. If the verdict is pass, its value will
appear in green.
To view channel results:

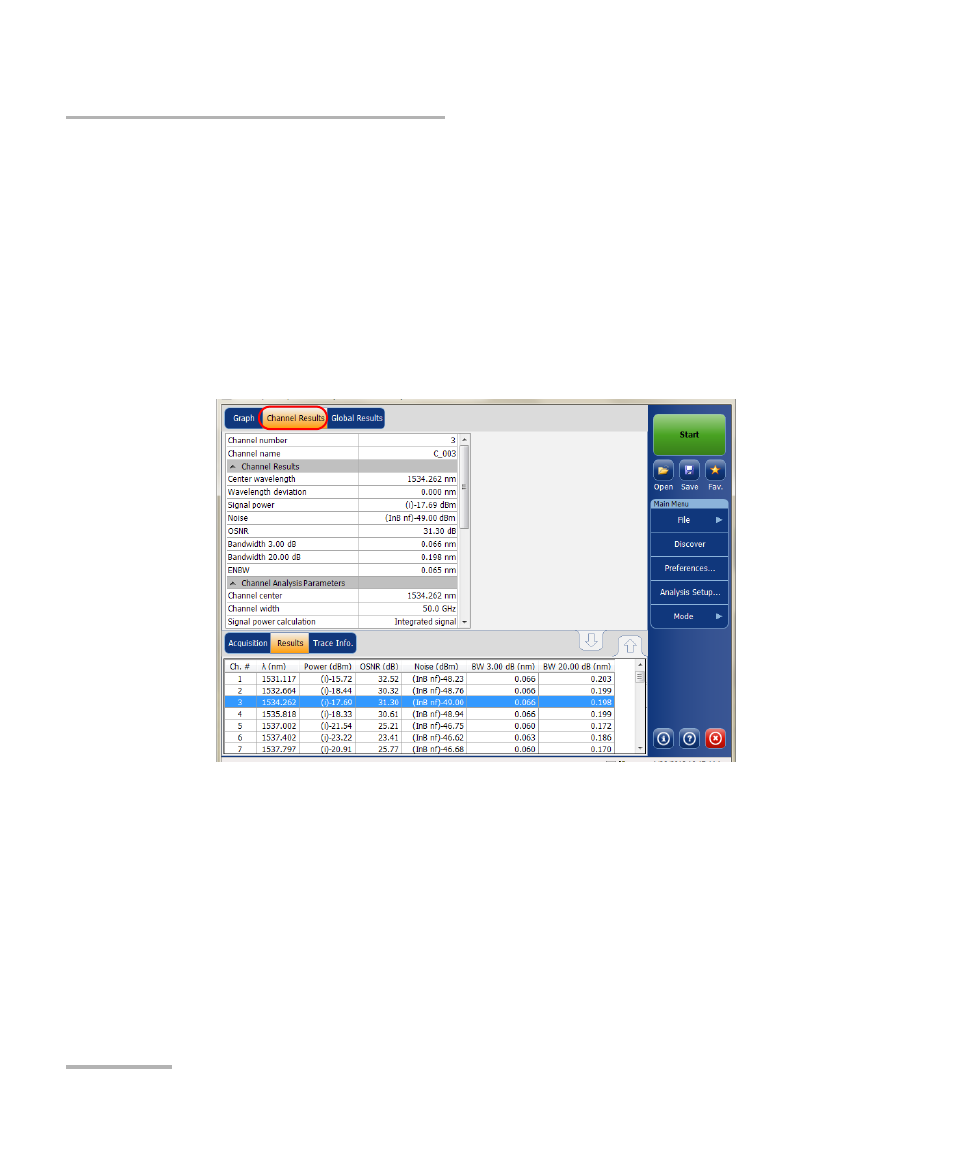

1. From the main window, select Channel Results tab.
