Managing drift test results, Dashboard tab – EXFO FTB-5230S Optical Spectrum Analyzer for FTB 200 v2 User Manual
Page 191
Managing Results
OSA/OCA
185
Managing Drift Test Results
Managing Drift Test Results
The application allows you to view and manage your drift test results. You
can view the dashboard, channel graph and WDM graph of your drift
acquisition, channel history results for a single channel and information
about the trace.
Dashboard Tab

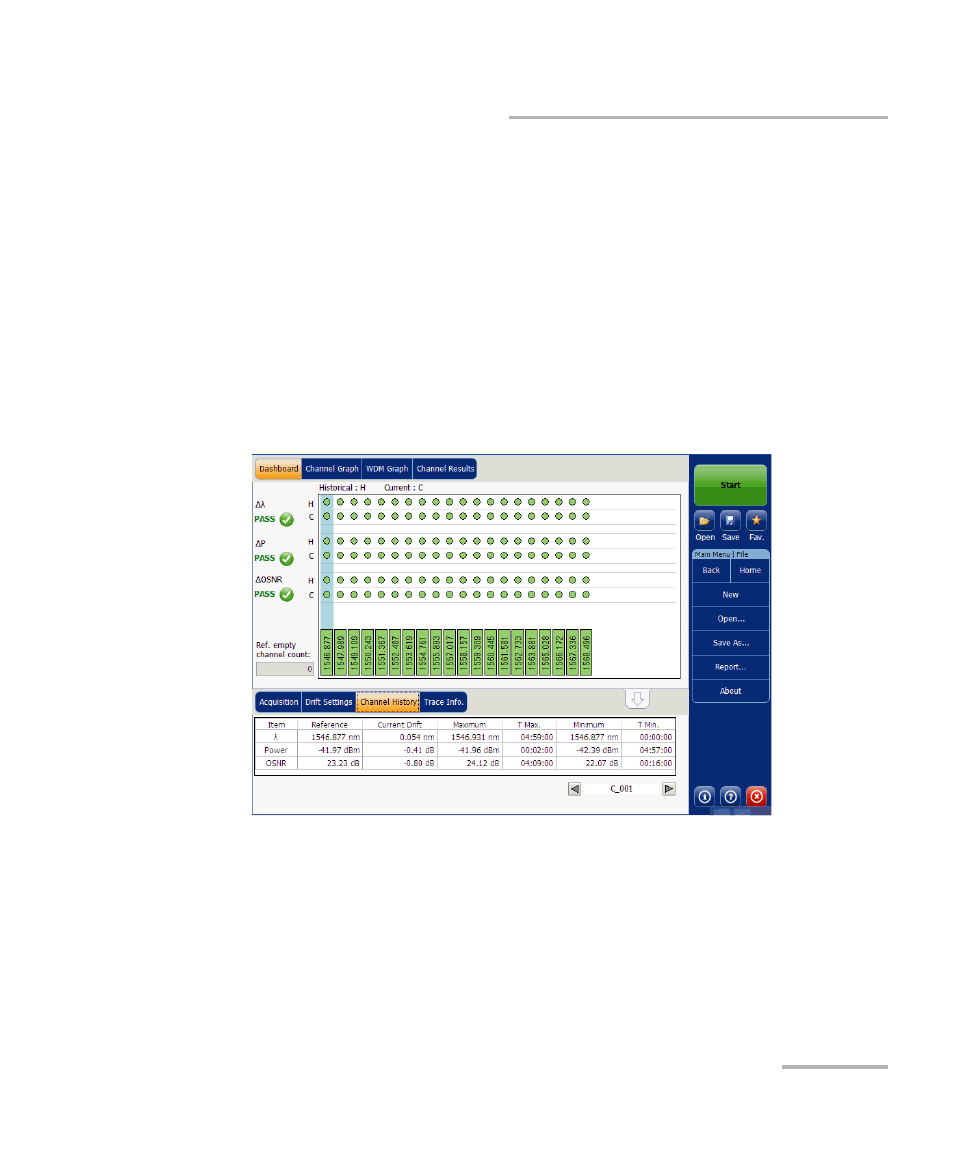

The dashboard allows you to view at-a-glance the pass/fail status of each
parameter for each channel that is measured during a drift measurement.
When there is no measurement, the dashboard is blank.
