Setup for 5.1 Surround Sound
To setup your system for 5.1 surround sound you will
need to connect the audio cables to the Line-In, Head-
phone-Out and Microphone-In jacks.
1. Click Start, and click Control Panel (or point to Settings and
click Control Panel) and make sure you are in Classic View.
2. Click Realtek HD Audio Manager (or right-click the taskbar
icon
and select Sound Manager).
3. Click Speakers (tab) and click Speaker Configuration (tab).
4. Select 5.1 Speaker from the Speaker Configuration pull-
down menu.

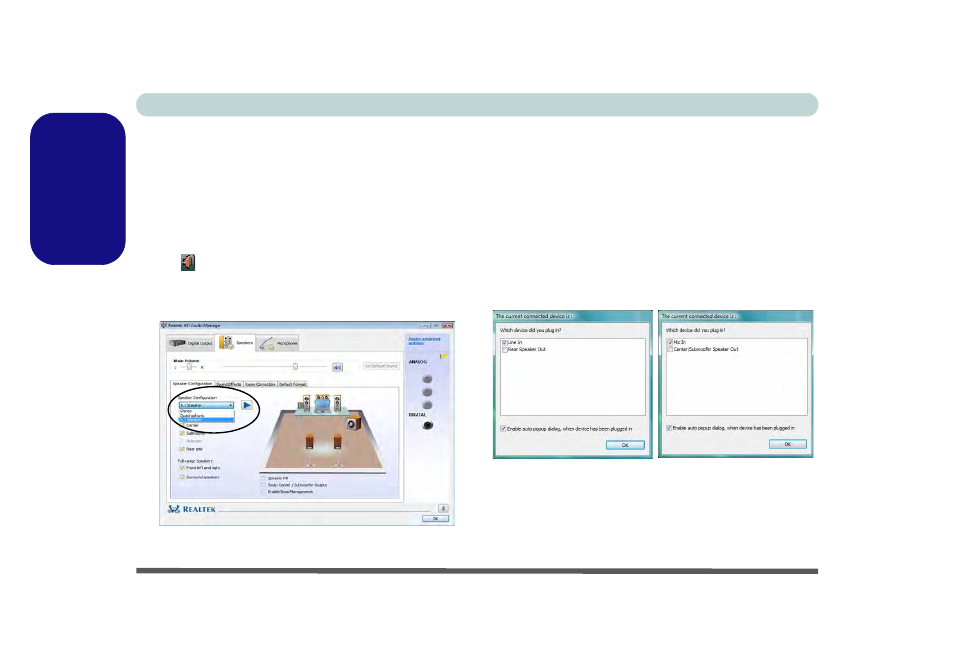

Figure 13 - Speaker Configuration
5. Plug the front speaker cables into the Headphone-Out Jack.
6. Plug in the cables (you may require an adapter to connect
each cable to the appropriate jack e.g a stereo mini to dual
RCA adapter) from your speakers as follows:
• Line-In Jack = Rear Speaker Out
• Microphone-In Jack = Center/Subwoofer Speaker Out
7. As you plug in each cable a dialog box will pop up.
8. Click to put a tick in the appropriate box according to the
speaker plugged-in (e.g. Rear Speaker Out), and then click
OK to save the setting.
9. Click OK to exit Realtek HD Audio Manager .
Figure 14 - Connected Device Auto Popup
