System Map: Front & Rear Views 1 - 15
Quick Start Guide
1

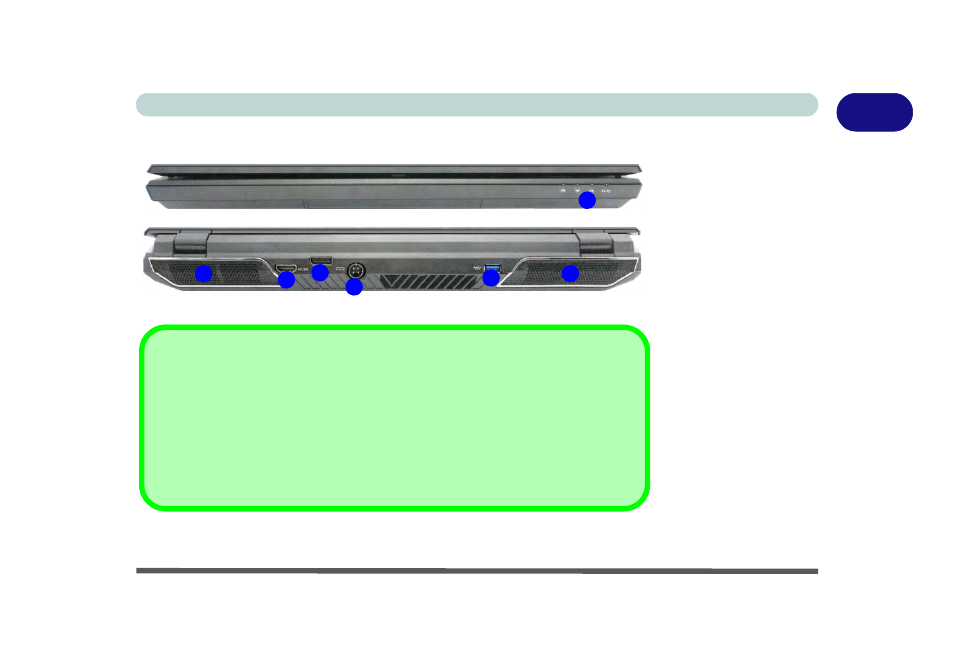

System Map: Front & Rear Views
Figure 1 - 7
Front & Rear Views
1. LED Power Indica-
tors
2. Speakers
3. HDMI-Out Port
4. Display Port
5. DC-In Jack
6. 1 * USB 3.0 Port
See Appendix A for a more
detailed description of the
ports & jacks etc.
1

HDMI Port
Note that the HDMI Port supports video and audio signals to attached external displays (al-
so see
“HDMI Audio Configuration” on page C - 17 ).
USB 3.0 Ports & USB Port Power
Note that the connections to the USB ports only fit one way, do not force them. USB 3.0
ports are denoted by their blue color; USB 2.0 ports are colored black. Note that the USB
3.0 port requires a driver installation (see
“USB 3.0” on page 4 - 6 ) and is not operational
under DOS.
2
3
4
5
6
