Storage Devices, Mouse, & Audio
2 - 6 Audio Features
2
5.
Plug the front speaker cables into the Headphone-Out Jack.
6.
Plug in the other cables (you may require an adapter to connect each cable to the
appropriate jack e.g a stereo mini to dual RCA adapter) from your speakers as
follows:
• Line-In Jack = Rear Speaker Out
• Microphone-In Jack = Center/Subwoofer Speaker Out
• S/PDIF-Out Jack = Side Speaker Out (for 7.1 Surround Sound Only)
7.
As you plug in each cable a dialog box will pop up.
8.
Click to put a check in the appropriate box according to the speaker plugged-in
(e.g. Rear Speaker Out), and then click OK to save the setting.
9.
Click OK to exit Realtek HD Audio Manager.

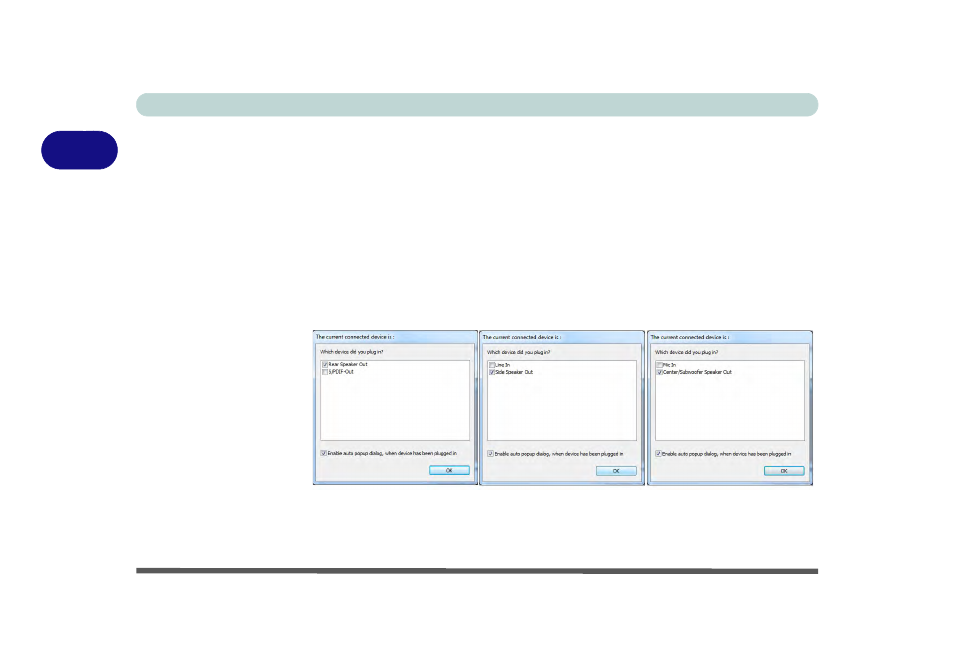

Figure 2 - 4
Connected Device
Auto Popup
Note: Side Speaker Out is required for 7.1 Surround only.
