System Map: LCD Panel Open - Model B 1 - 11
Quick Start Guide
1
LED Indicators
The two sets of LED indicators (LED Status Indica-
tors and LED Power & Communication Indicators)
on the computer display helpful information about the
current status of the computer.

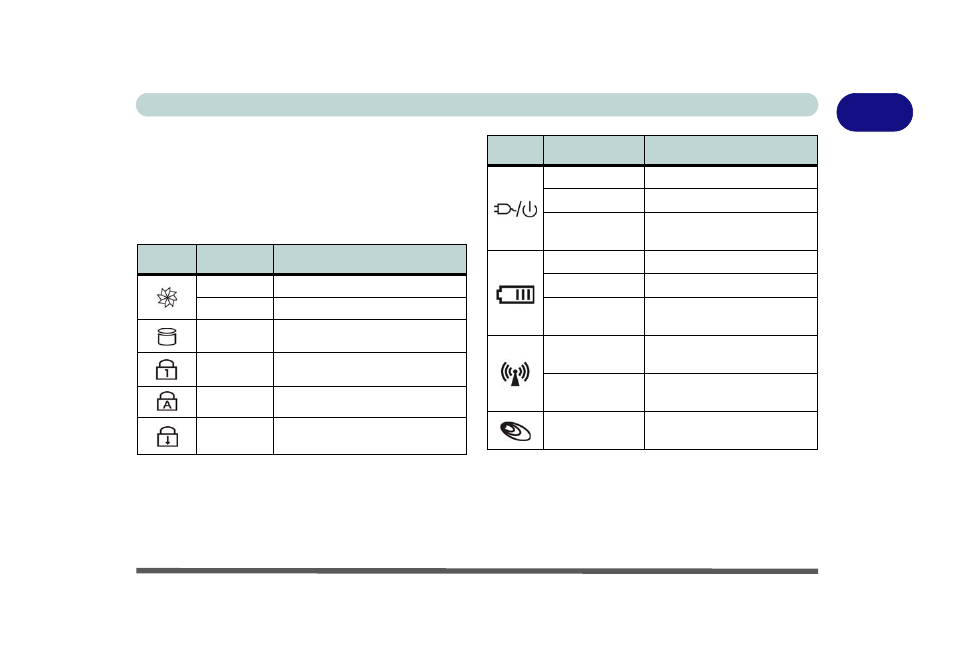

Table 1 - 2 - LED Status Indicators
Table 1 - 3 - LED Power & Communication Indicators
Icon Color Description
Green Silent Mode Activated (see over)
Off Normal Mode Activated (see over)
Green Hard Disk Activity
Green Number Lock Activated
Green Caps Lock Activated
Green
Scroll Lock Activated (to activate
press Fn & Scr Lk)
Icon Color Description
Orange DC Power is Plugged In
Green The Computer is On
Blinking Green
The Computer is in Sleep
Mode
Orange The Battery is Charging
Green The Battery is Fully Charged
Blinking Orange
The Battery Has Reached
Critically Low Power Status
Green
The (optional) Wireless LAN
Module is Powered On
Orange
The (optional) Bluetooth
Module is Powered On
Green
The (optional) 3.5G Module is
Powered On
