1 - 10 System Map: LCD Panel Open - Model B
Quick Start Guide
1

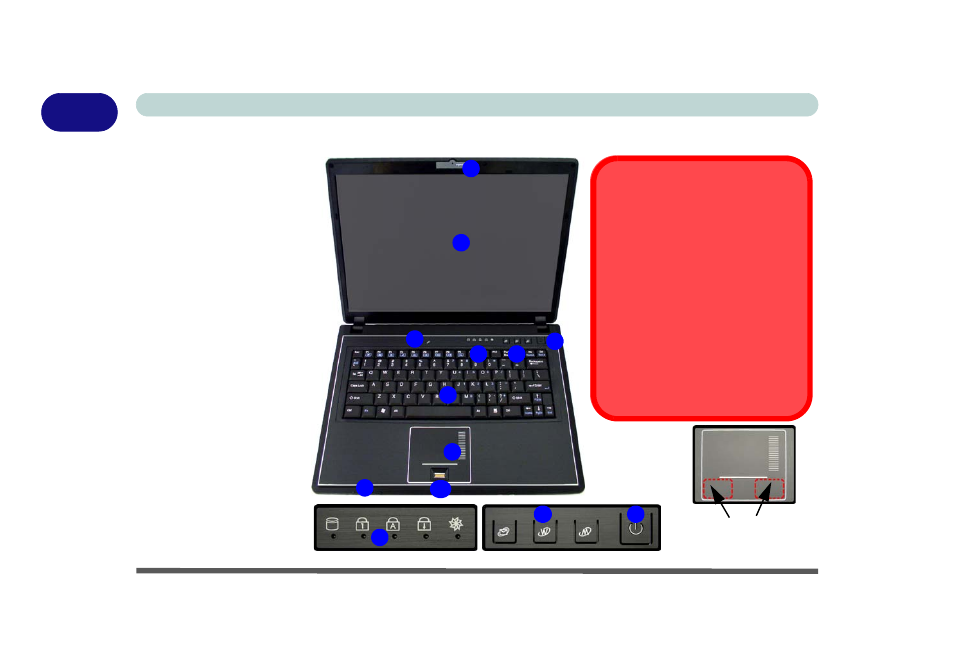

System Map: LCD Panel Open - Model B
Figure 1 - 5
LCD Panel Open -
Model B
1. Built-In PC Camera
(Optional)
2. LCD (LED Backlight
LCD Optional)
3. Built-In Microphone
4. Power Button
5. Hot Key Buttons
6. LED Status
Indicators
7. Keyboard
8. Touchpad &
Buttons
9. LED Power &
Communication
Indicators
10. Fingerprint Module
(Optional)
Note the cleaning in-
structions for aluminum
covers - see page
1 - 2 .
2
5
1
7
8
4
6
9
3
10
6
5 4
Wireless Device
Operation Aboard Aircraft
The use of any portable electronic trans-
mission devices aboard aircraft is usually
prohibited. Make sure the module(s) are
OFF if you are using the computer
aboard aircraft.
Use the key combinations to toggle pow-
er to the 3.5G/WLAN/Bluetooth mod-
ules, and check the LED indicator icon to
see if the modules are powered on or not
(see
Table 1 - 5, on page 1 - 14 / Table 1
- 2, on page 1 - 11 ).
Touchpad Buttons
(valid operation area)
