Upgrading The Computer
Upgrading the Hard/Solid State Disk Drive 6 - 9
6
Removing the HDD
1. Remove the HDD bay cover (see page 6 - 7 ).
2. Grip the tab and slide the HDD assembly in the direction of arrow .
3. Remove the HDD assembly .
4. Remove screws & and the cover .
5. Replace the HDD assembly by using a finger to push it in at point in the
direction of arrow .
6. Replace the component bay cover and screws.

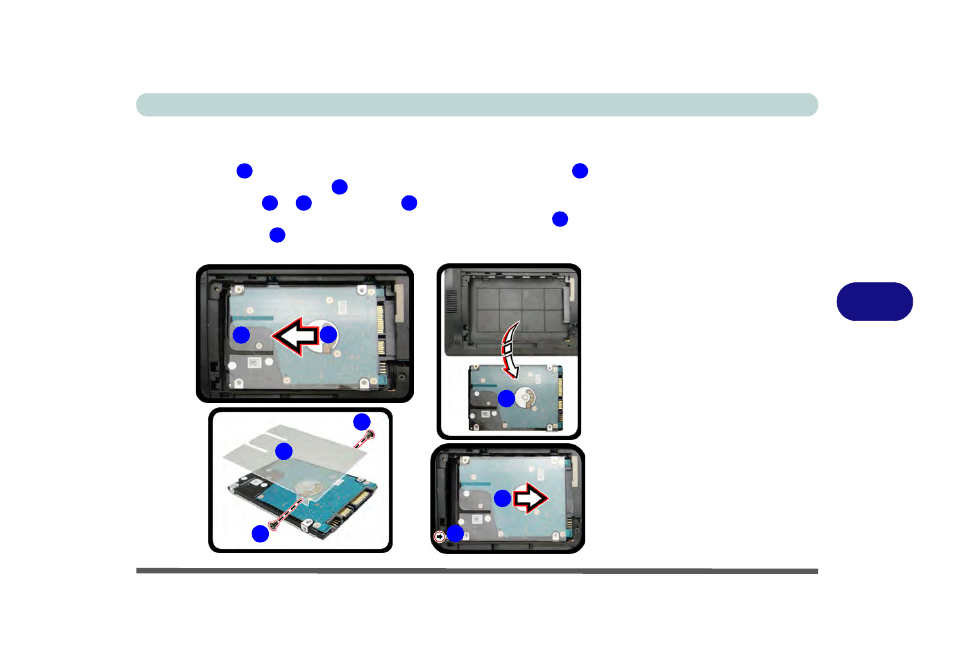

Figure 6 - 6
HDD Removal &
Insertion
