6 - 8 Upgrading the Hard/Solid State Disk Drive
6
Replacing the HDD Bay Cover
1. Reinsert the HDD bay cover by placing it on the bottom case assembly, and make
sure the case markers line up
.
2. Apply downward pressure with both thumbs at points & and slide the cover
in the direction of the arrows as illustrated.
3. Replace screws & ( Figure 6 - 4 on page 6 - 7 ) and battery (see page 6 - 3 ).

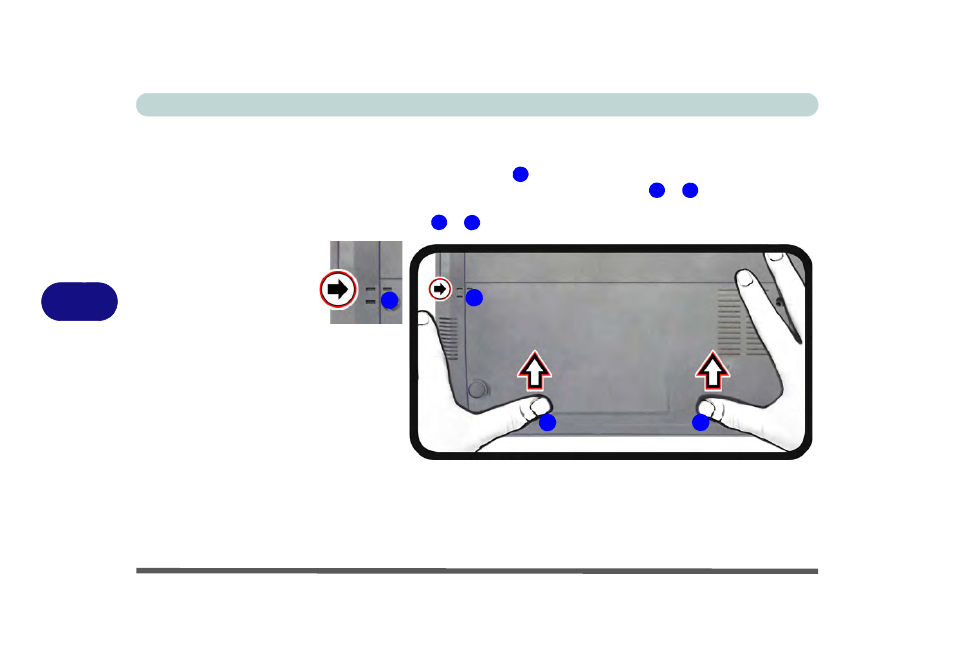

Figure 6 - 5
Replacing the HDD
Bay Cover
1
2 3
1 2
1 1
2 3
