-37-

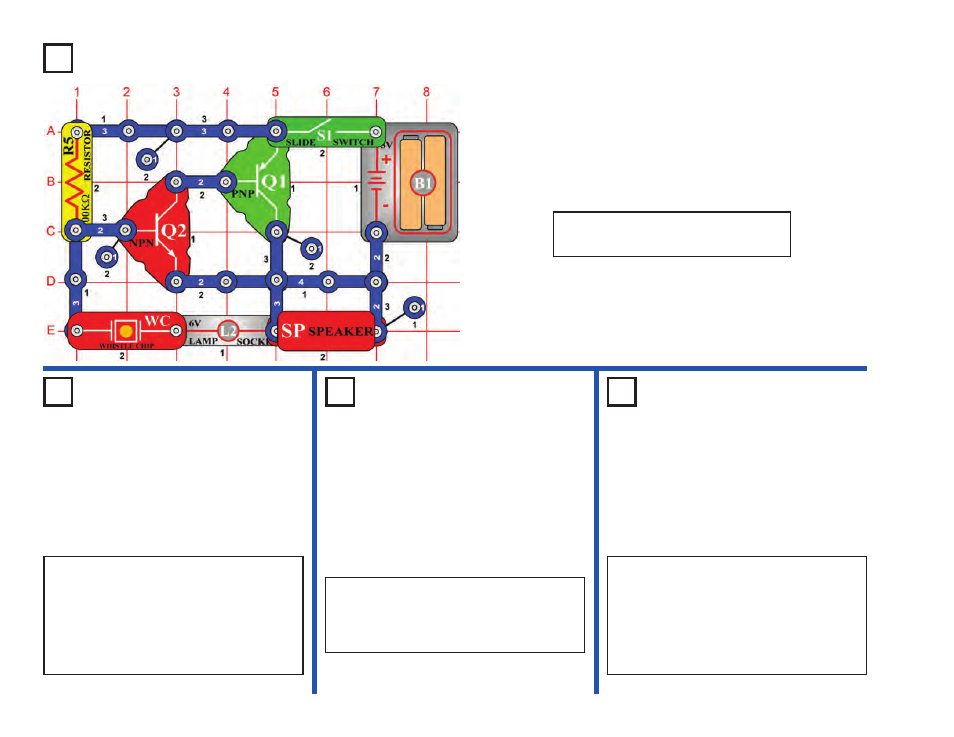

Project #206

OBJECTIVE: To build a high-frequency oscillator.

Tone Generator

Project #207

Tone

Generator (II)

OBJECTIVE: To lower the frequency of a
tone by increasing circuit capacitance.

Place the 0.02

μ

F capacitor (C1) on top of the

whistle chip (WC) in the preceding circuit, you
hear a middle-frequency sound. Why? The
whistle chip is used here as a capacitor and
by placing the 0.02

μ

F on top (in parallel) we

have increased the capacitance, and doing so
lowers the frequency.

Project #208

Tone

Generator (III)

OBJECTIVE: To lower the frequency of a
tone by increasing circuit capacitance.

Next, replace the 0.02

μ

F capacitor (C1) and

the whistle chip (WC) with the larger 0.1

μ

F

capacitor (C2). You now hear a low frequency
sound, due to yet more capacitance.

Project #209

Tone

Generator (IV)

OBJECTIVE: To lower the frequency of a
tone by increasing circuit capacitance.

Now replace the 0.1

μ

F (C2) with the much

larger 10

μ

F capacitor (C3), (orient with the

positive (+) side towards the left); the circuit
just clicks about once a second. There isn’t a
constant tone anymore due to other transistor
properties. You need a different type of circuit
to create very low frequency tones.

Build the circuit and turn it on, you hear a
high-frequency sound.
