Rapid Deployment Example for EES
19
Using the Power Web Pages
You can use the Power Web pages to view summaries of the energy used in each zone. The Power
Web pages include a Power Summary Web page and a One-Line Diagram Web page. The
following sections describe these pages.
Using the Power Summary Web Page
To open and use the Power Summary Web page, follow these steps:
1. Expand the Power entry in the navigation pane on left side of the Web interface, and then click
Summary.

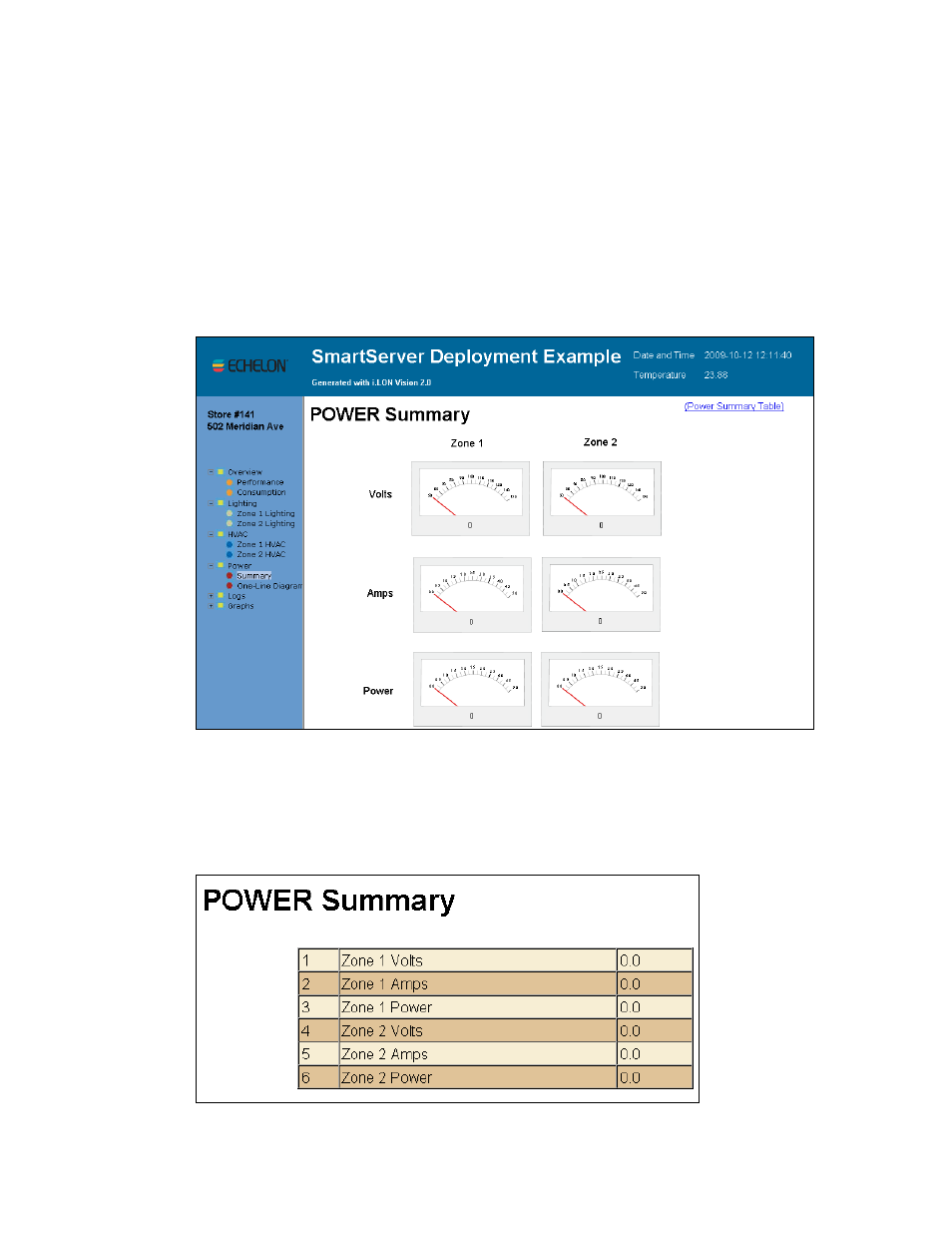

2. The Power Summary Web page opens.
3. This Web page includes a set of Meter objects that display the volts, amps, and kilowatts
consumed by each zone in the network.
4. Optionally, you can view details of each zone’s power consumption by clicking the Power
Summary Table link in the upper right-hand corner of the Web page.
5. A Web page opens displaying a table that lists the volts, amps, and kilowatts consumed by each
zone in the network.
