PICO841 Intel
®
Atom
TM
Processor E3845/E3827 Pico-ITX Board
36
AX93267 I/O Board

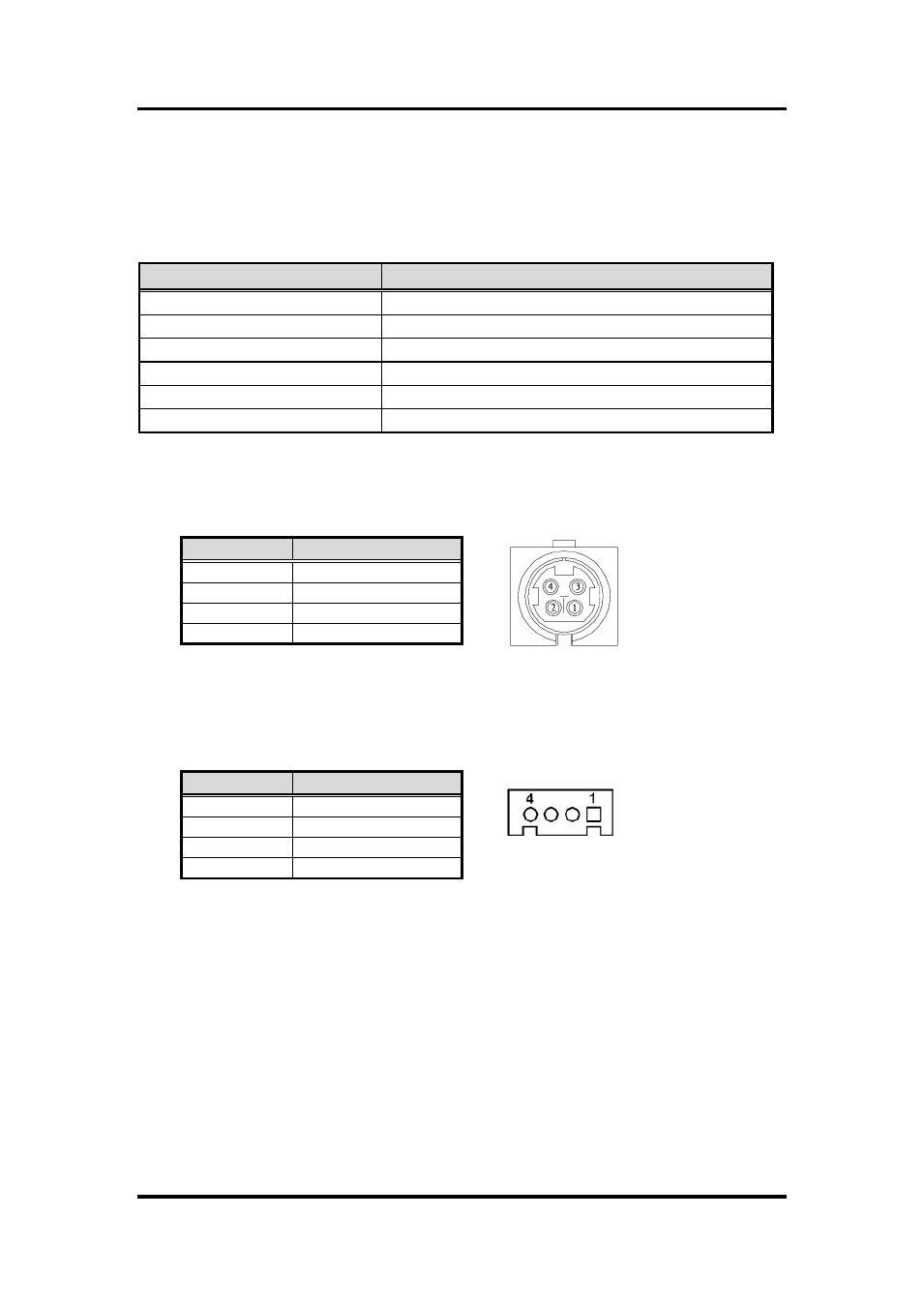

4.4
AX93267 Connectors
Signals go to other parts of the system through connectors. Loose or improper connection
might cause problems, please make sure all connectors are properly and firmly connected.
Here is a summary table which shows all connectors on the hardware.
Connector
Description
CN1
DC Power Jack
CN2
DC Power Connector
CN3
VGA Connector
CN4
D-Sub VGA Connector
CN5
Ethernet Connector
CN6
RJ-45 Ethernet Port
4.4.1
DC Power Jack (CN1)
The CN1 is a DC power jack for DC +12V input.
4.4.2
DC Power Connector (CN2)
This is a 1x4-pin wafer connector for DC +12V. It is suggested to connect the CN2 to
PICO841
’s CN11.
Pin
Signal
1
GND
2
GND
3
+12V
4
+12V
Pin
Signal
1
+12V
2
+12V
3
GND
4
GND
