Axiomtek PICO841 - Manual (Page 31)

PICO841 Intel
®
Atom
TM
Processor E3845/E3827 Pico-ITX Board
AX93283 I/O Board 25
Chapter 3
AX93283 I/O Board
The AX93283 is an I/O expansion board which is suggested to insert carefully into CN1 and
CN2 of PICO841. Its specifications and detailed information are given in this chapter.
3.1 AX93283 Specifications
 Size
 29.25mm x 118mm
 Features
 Supports audio jack (MIC-in/line-out).
 Four USB 2.0.
 Serial ports: Two ports for RS-232/422/485.
 Power-on, reset and red/green LED.
Note
All specifications and images are subject to change without notice.

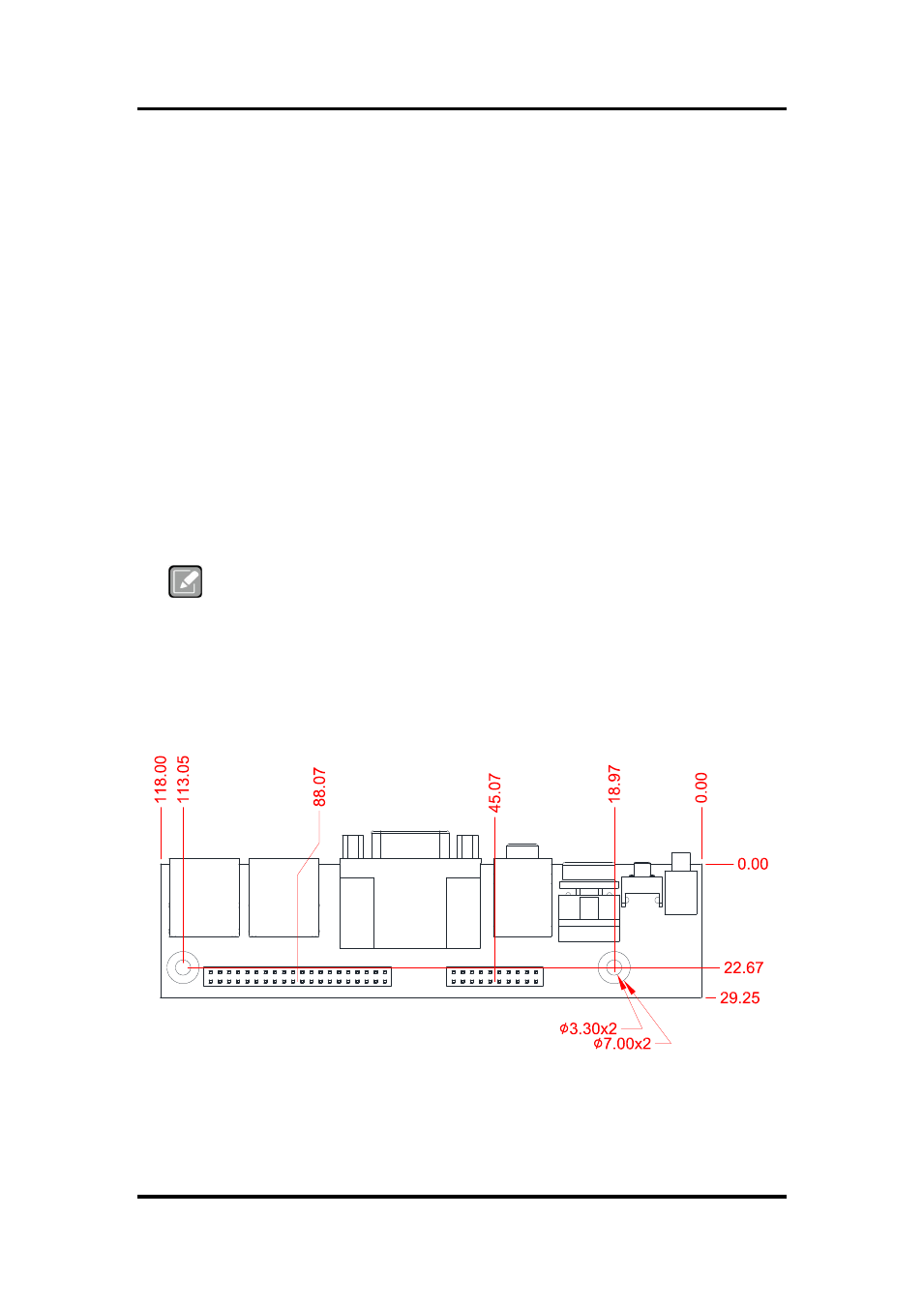

3.2 AX93283 Dimensions and Fixing Holes
Top View
