Chapter 2, Board and pin assignments, Board dimensions and fixing holes – Axiomtek PICO841 User Manual

Page 11: Chapter 2 board and pin assignments

background image

PICO841 Intel

®

Atom

TM

Processor E3845/E3827 Pico-ITX Board

Board and Pin Assignments

5

Chapter 2

Board and Pin Assignments

2.1

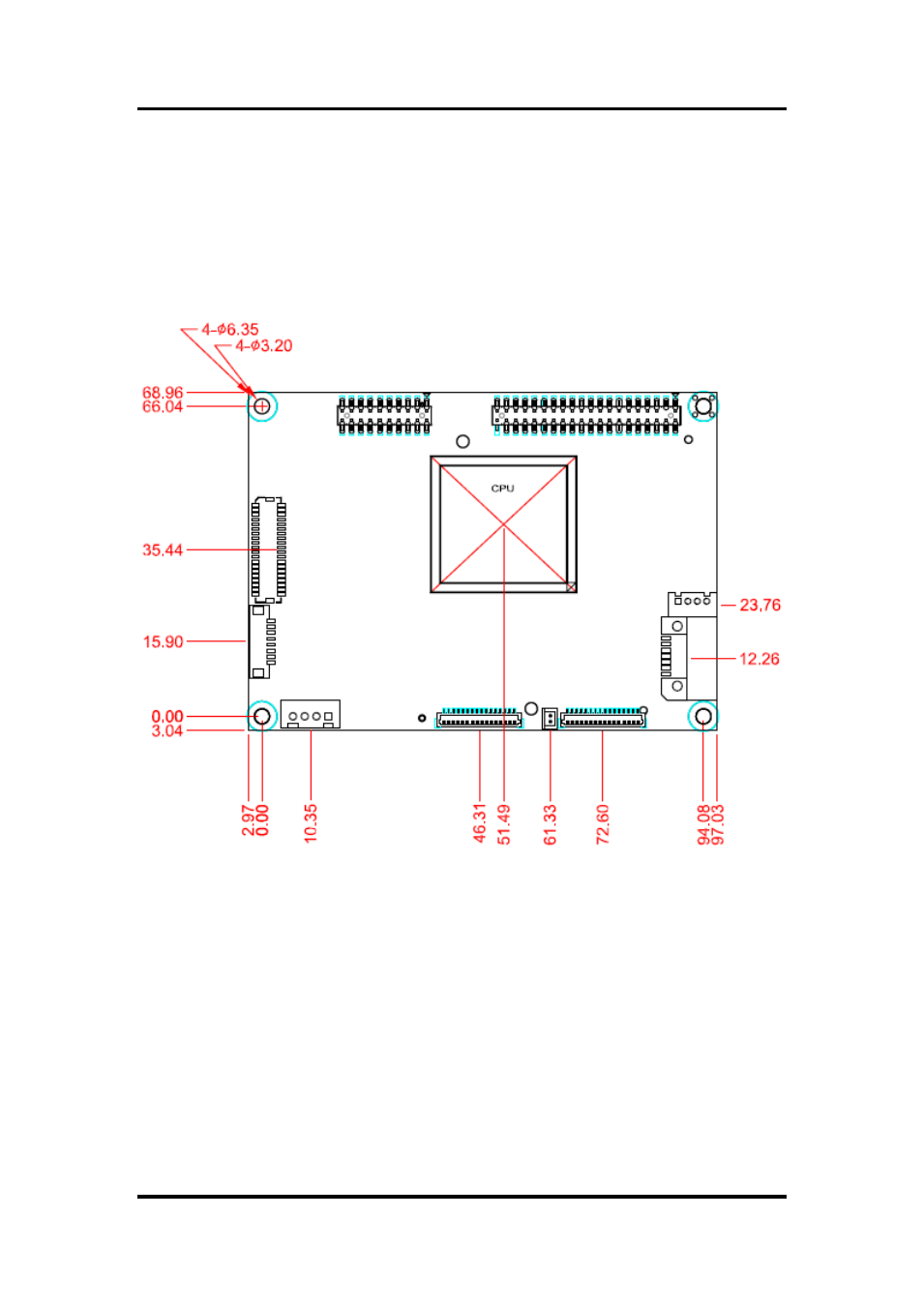

Board Dimensions and Fixing Holes

Top View
