Sata connector (sata1), Cmos battery connector (bat1), 12 sata connector (sata1) – Axiomtek PICO841 User Manual
Page 27: 13 cmos battery connector (bat1)
PICO841 Intel
®
Atom
TM
Processor E3845/E3827 Pico-ITX Board
Board and Pin Assignments
21
2.5.12

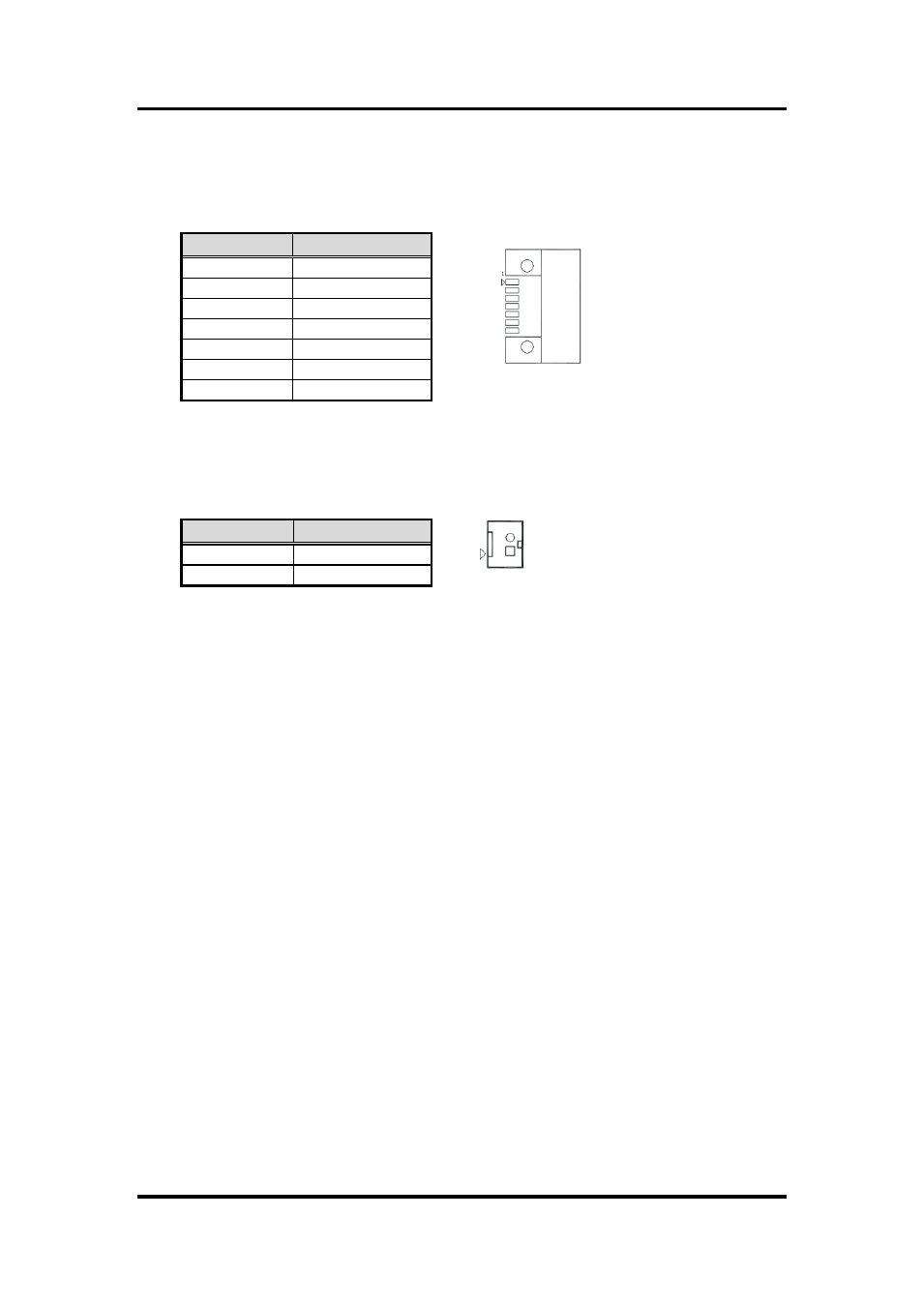

SATA Connector (SATA1)
This Serial Advanced Technology Attachment (Serial ATA or SATA) connector is for
high-speed SATA interface. It is a computer bus interface for connecting to devices such
as hard disk drives.
2.5.13
CMOS Battery Connector (BAT1)
This connector is for CMOS battery interface.
Pin
Signal
1
GND
2
TXP
3
TXN
4
GND
5
RXN
6
RXP
7
GND
Pin
Signal
1
+3.3V
2
GND
1
1
7
1
