IPC932-230-FL Quick Installation Guide

9416G932000E 1

Version A1 May 2014
Printed in Taiwan

Checklist

 IPC932-230-FL Series Finless

System Unit x 1

 HDD Bracket x 2

 Screw Pack x 1

 HDD Mylar x 2

 Driver CD x1

 Foot Pad x 4

 Quick manual x 1

 Wall mount bracket x 2

 CPU Thermal Pad x 1

 19V 150W Adapter (for AC

Version)

 Remote switch cable x 1

 Terminal block x 1 (for DC

version)

Note: Please do not try to apply power to the system if any damaged

components.

Installing the CPU

Step 1 Turn off the system, and disconnect the power connector.

Step 2 Loosen screws to remove the HS cover from the chassis.

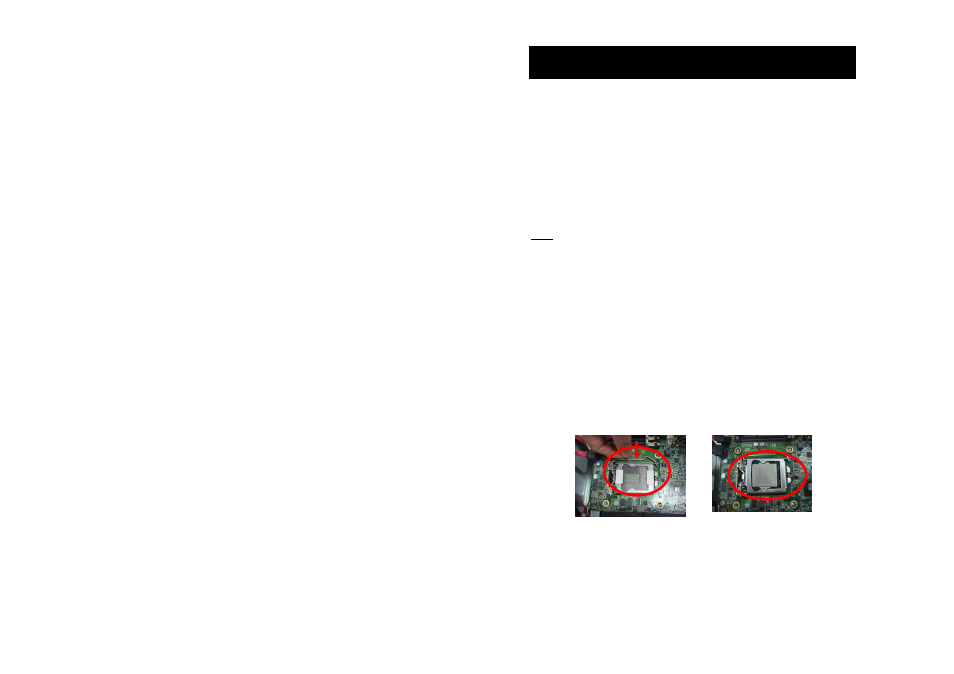

Step 3 After opening the Heatsink cover, you can locate the CPU

socket as marked. Align pins of the CPU with pin holes of
the socket. Be careful of the CPU’s orientation that you
need to align the arrow mark on the CPU with the arrow key
on the socket. Please remove the Mylar before you install
the CPU into the socket.
