PICO841 Intel
®
Atom
TM
Processor E3845/E3827 Pico-ITX Board
30
AX93283 I/O Board
3.5.6
Board to Board Connectors (CN9 and CN10)

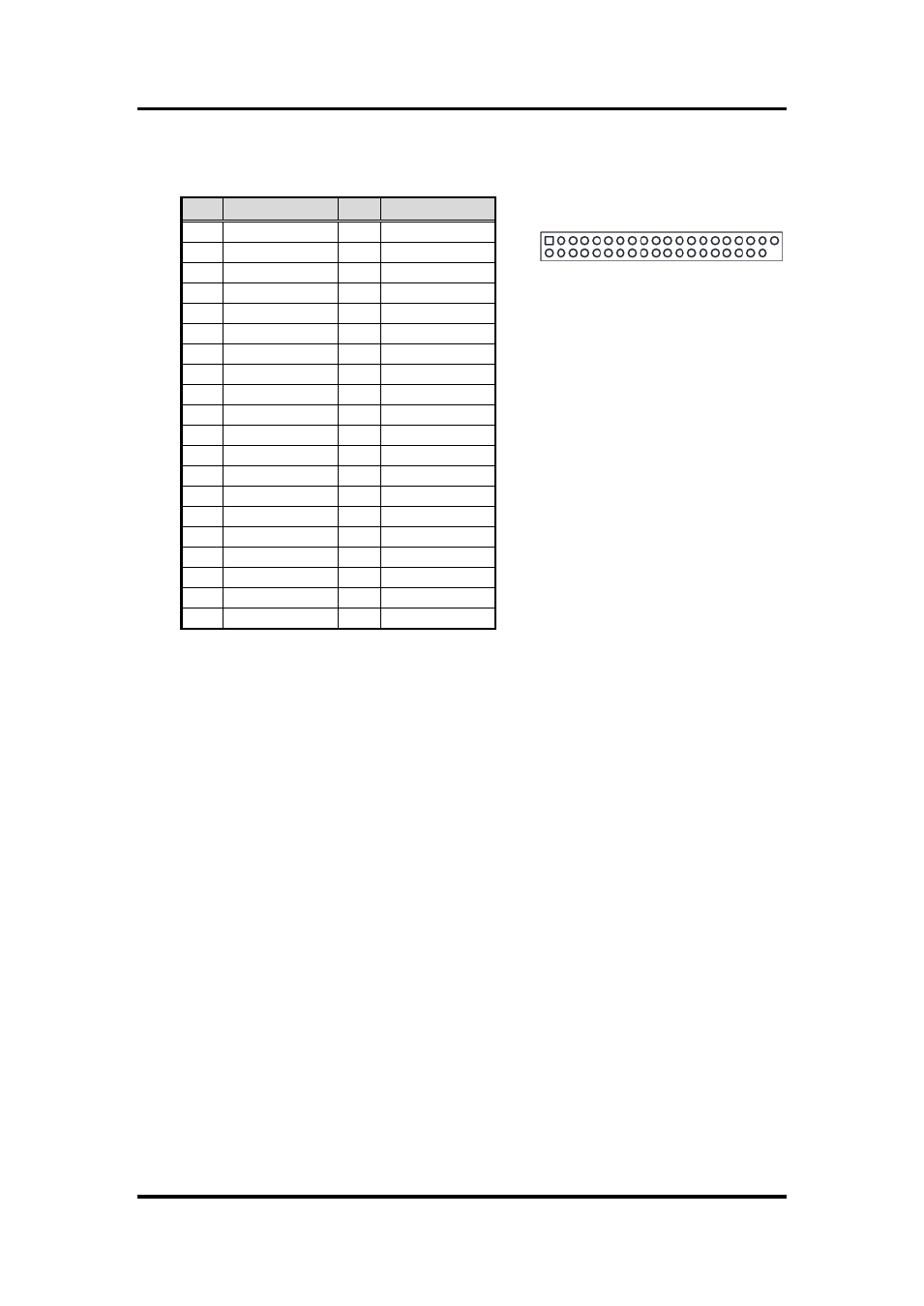

The pin assignments of CN9 are given as follows.
1 39
2 40
Pin Signal
Pin Signal
1
MIC
2
LINE_OUT_L
3
LINE_IN_L
4
LINE_OUT_R
5
LINE_IN_R
6
GND
7
GND
8
GND
9
GND
10
GND
11
USB1_PWR
12
USB1_PWR
13
USB0_DATA-
14
USB1_DATA-
15
USB0_DATA+
16
USB1_DATA+
17
GND
18
GND
19
GND
20
GND
21
USB2_PWR
22
USB2_PWR
23
USB2_DATA-
24
USB3_DATA-
25
USB2_DATA+
26
USB3_DATA+
27
GND
28
GND
29
GND
30
GND
31
+5V
32
PS_ON
33
RESET
34
GND
35
+5V
36
+12V
37
HDD_LED
38
+12V
39
GND
40
Ni
