Axiomtek PICO841 User Manual
Page 17

PICO841 Intel
®
Atom
TM
Processor E3845/E3827 Pico-ITX Board
Board and Pin Assignments
11

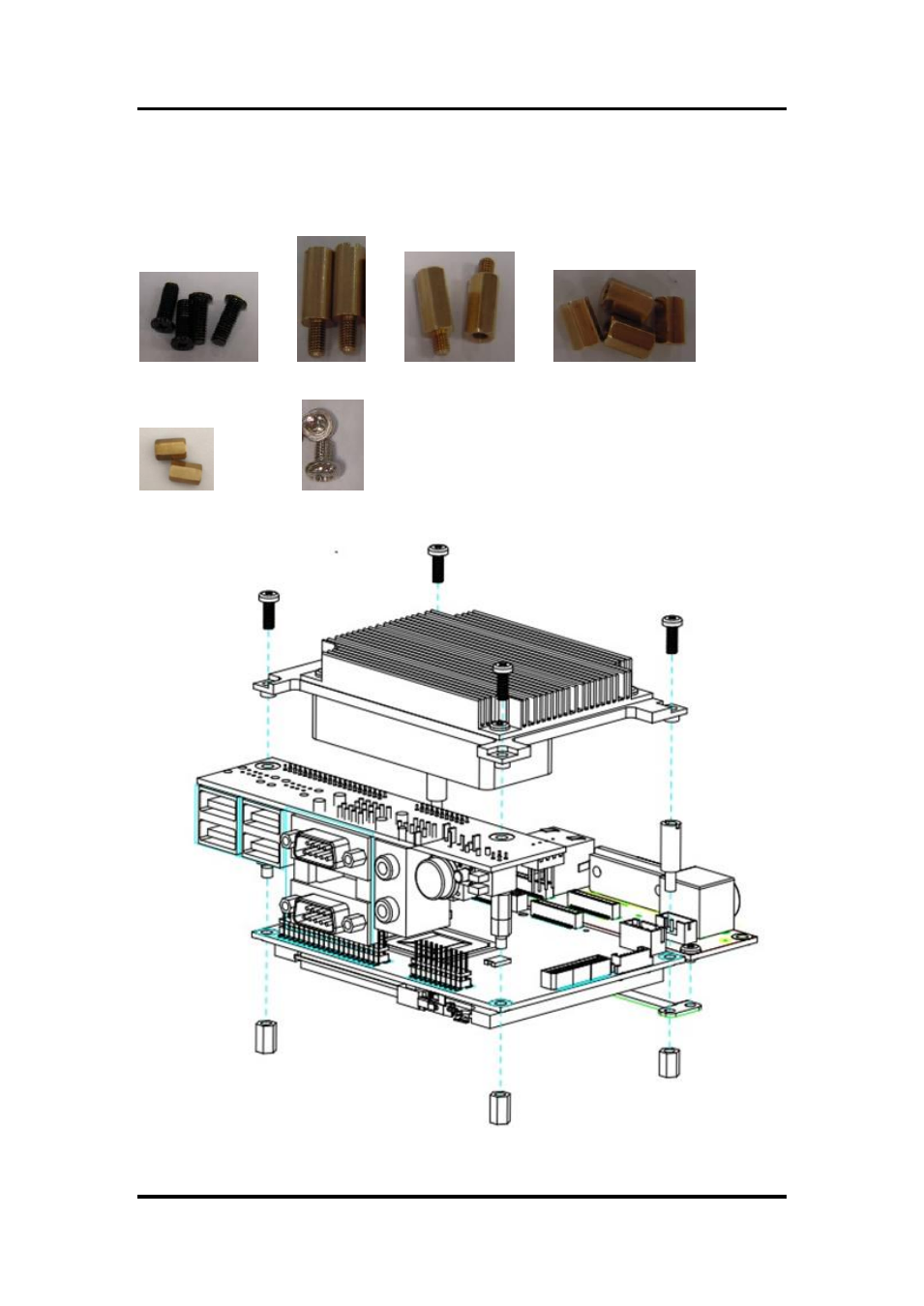

Installing Heatspreader and I/O Board
Gently insert I/O board into CN1 and CN2. Align and use the four screws to firmly secure the
heatspreader plate and I/O board to the PICO841. Be careful not to over-tighten the screws.
See chapter 3 and chapter 4 for more details of AX93283 and AX93267 I/O boards.
x4
x2
x2
x4 (8mm)
x2 (7mm)
x2
