Axiomtek PICO841 User Manual
Page 16

PICO841 Intel
®
Atom
TM
Processor E3845/E3827 Pico-ITX Board
10
Board and Pin Assignments
For thermal dissipation, a heatspreader enables the PICO841
’s components to dissipate heat
efficiently. Images below illustrate how to install the heatspreader.
Installing Heatspreader

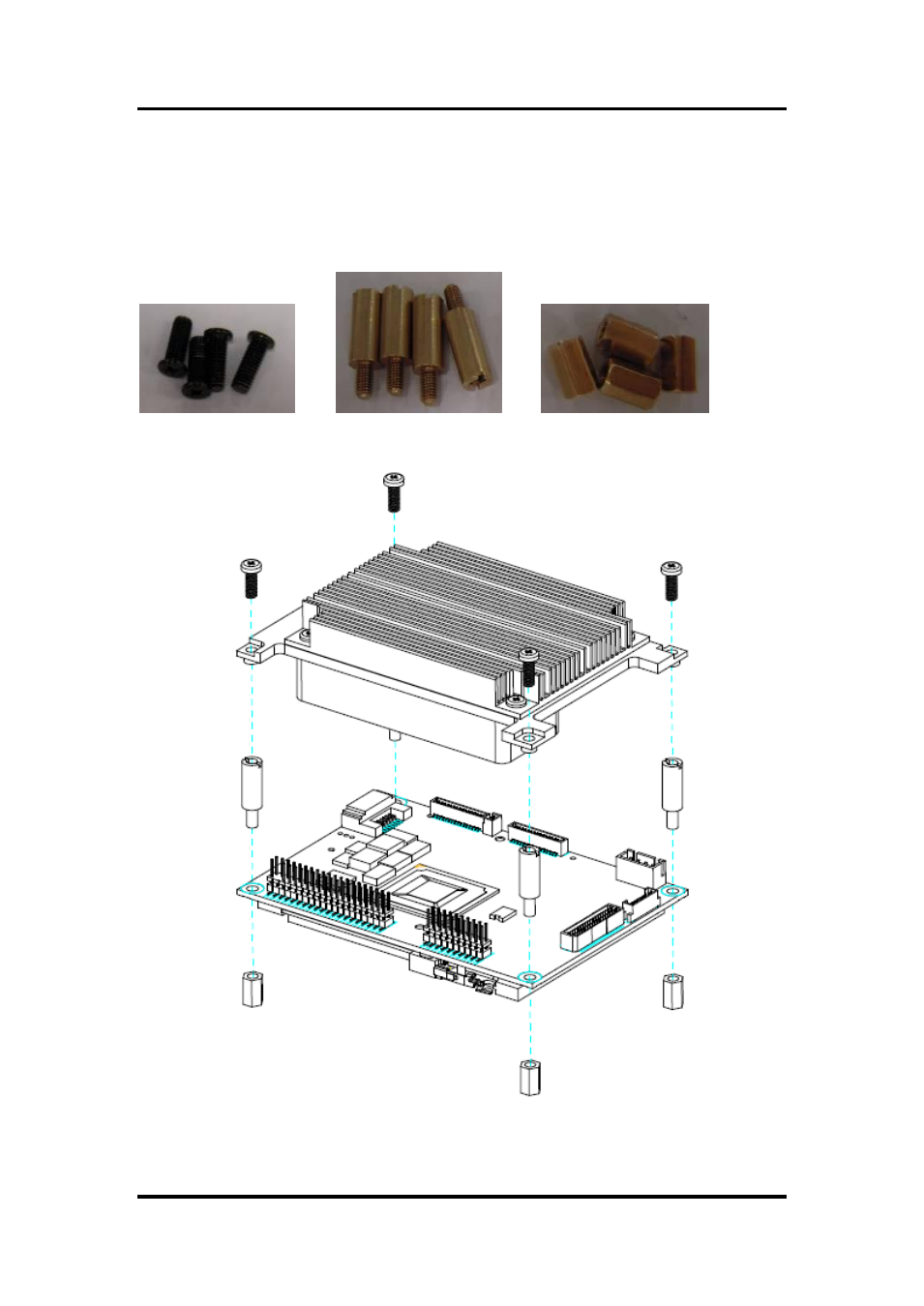

The PICO841 has four assembly holes for installing heatspreader plate. Align and firmly
secure the heatspreader plate to the PICO841. Be careful not to over-tighten the screws.
x4
x4
x4 (8mm)
