AMT Datasouth 2012 M6 Plus User Manual
Page 26
8. Use the DiagTool to set the media sensor type and calibrate the selected sensor. (Please refer to
section 4)
Note:
•
Please calibrate the gap/black mark sensor when changing media.
•
The sensor location is marked by a triangle mark
▽
at the sensor housing.
•
The media sensor position is moveable. Please make sure the gap or black mark is at
the location where media gap/black mark will pass through for sensing.
z

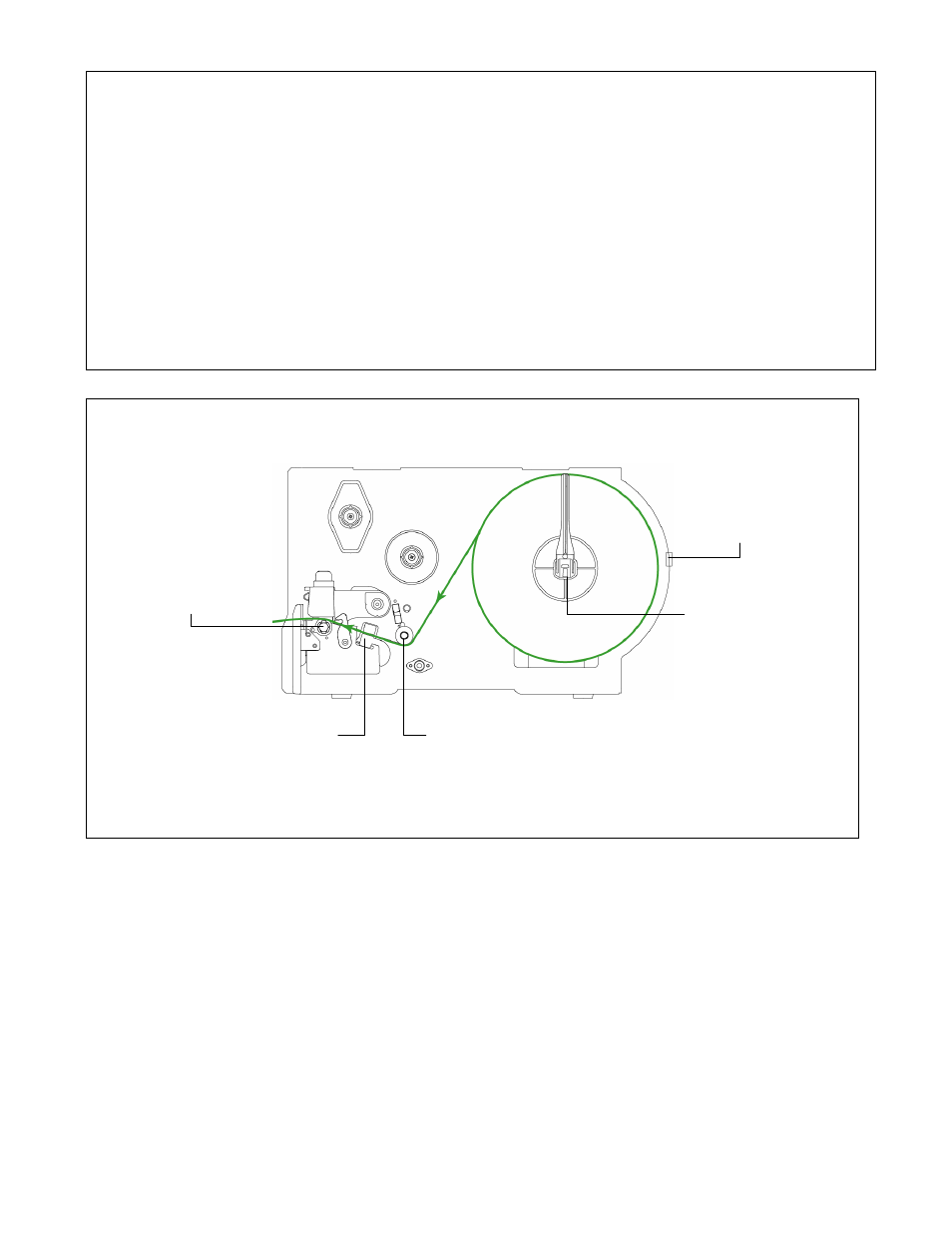

Loading path for roll labels
Rear media
loading slot
Media sensor
Media supply
spindle
Media guide bar
Platen roll
20
