Figure 10: final installation step – American Energy Systems Universal Doors User Manual
Page 26
Version 1.0a (draft)
16
COMBUSTION
AIR COVER
BRASS PIN

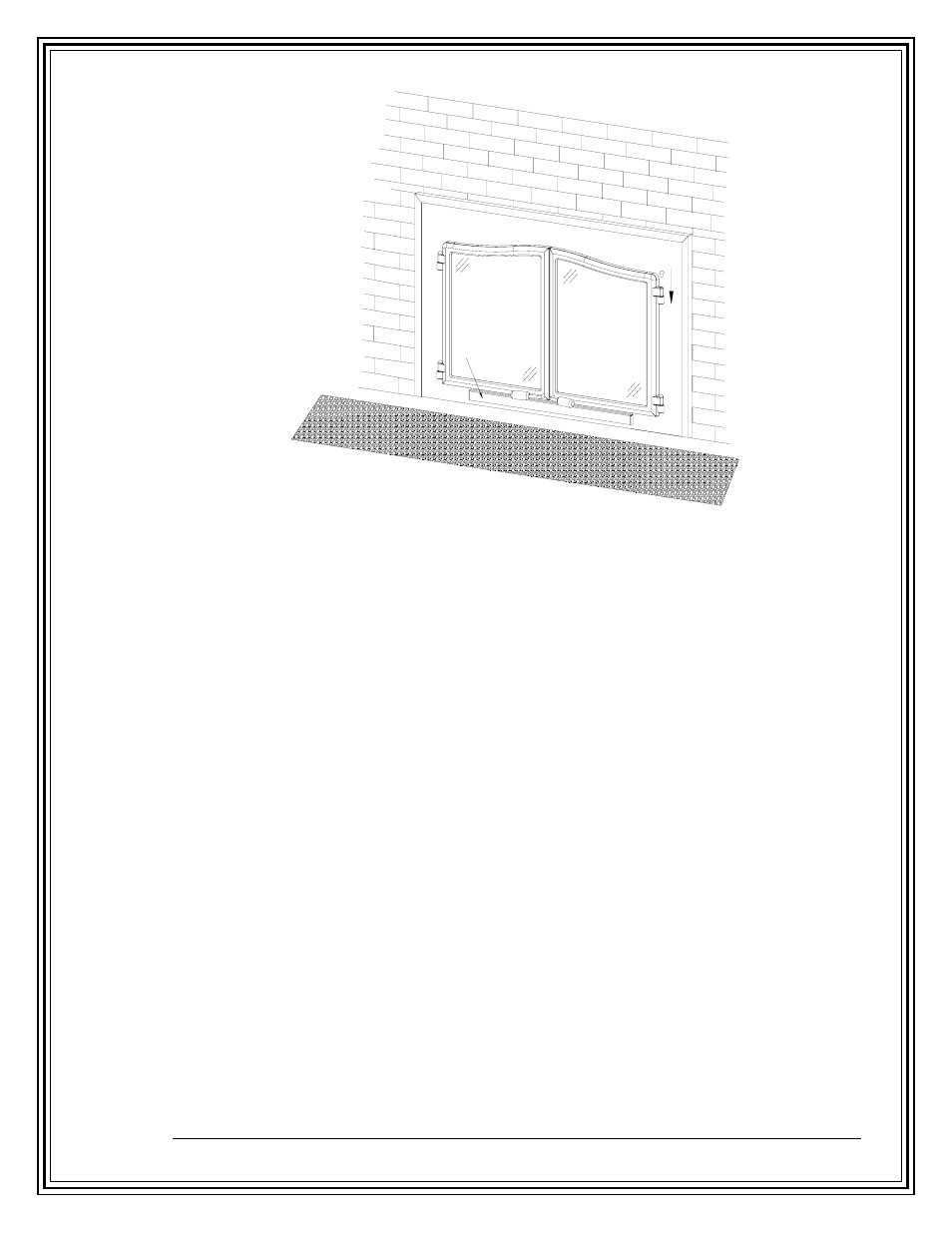

FIGURE 10: FINAL INSTALLATION STEP
Only 500 Door Systems require the next installation step. Install the combustion air slide cover
onto the face of the door frame. This cover sits on two brackets just below both doors. This cover
is removable. This allows the homeowner to vacuum lint or dirt that may get sucked into the
combustion air holes from years of use. The 400 Door Systems have the cast combustion air
controls that can be unscrewed from the door bolt for cleaning purposes.
The FINAL INSTALLATION STEP requires cleaning of the door and glass. It is important to
ensure that any plated (gold or nickel) doors are clean. Refer to the section of this manual that
pertains to proper cleaning of doors and glass. If the plated doors are not properly cleaned before
the first fire, permanent damage will occur to the plating. This damage is expensive to repair and is
not covered by Country Flame’s warranty.
