Intelli-choice – American Energy Systems Crossfire Flex User Manual
Page 20
Version
4.0
20

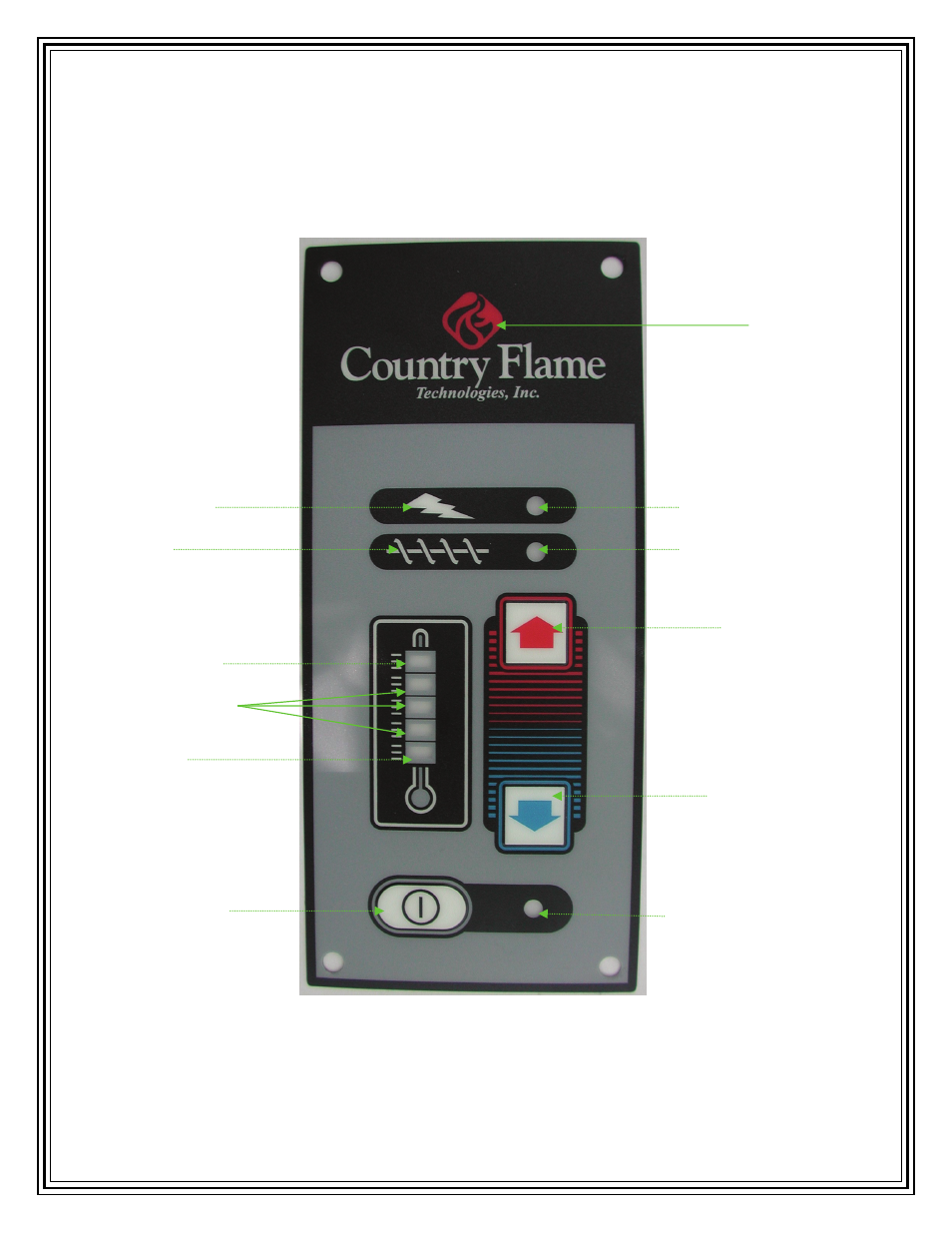

FIGURE 5 displays the Country Flame Control Board front panel. Each function of the Control Board is
identified. Controls having more than a single function are identified with asterisks. All control board
functions are explained in FIGURE 6.
“Intelli-Choice”
Country Flame Logo, AC
Power is present when
logo is lit.
Lighting Symbol
Slow/Fast Blink depending
on ‘on state.’
Auger Feed Symbol
Auger Feed Light,
Green when Auger is on
* Heat Up Switch
High Heat Setting
Red When Lit
Medium Heat Setting
Yellow When Lit
Low Heat Setting
Yellow When Lit
*Heat Down Switch
*ON/OFF Switch *DC Power on Light
Red, System Off
Green, System On
Yellow, System Dirty
FIGURE 5: CONTROL BOARD FACE PLATE
