25

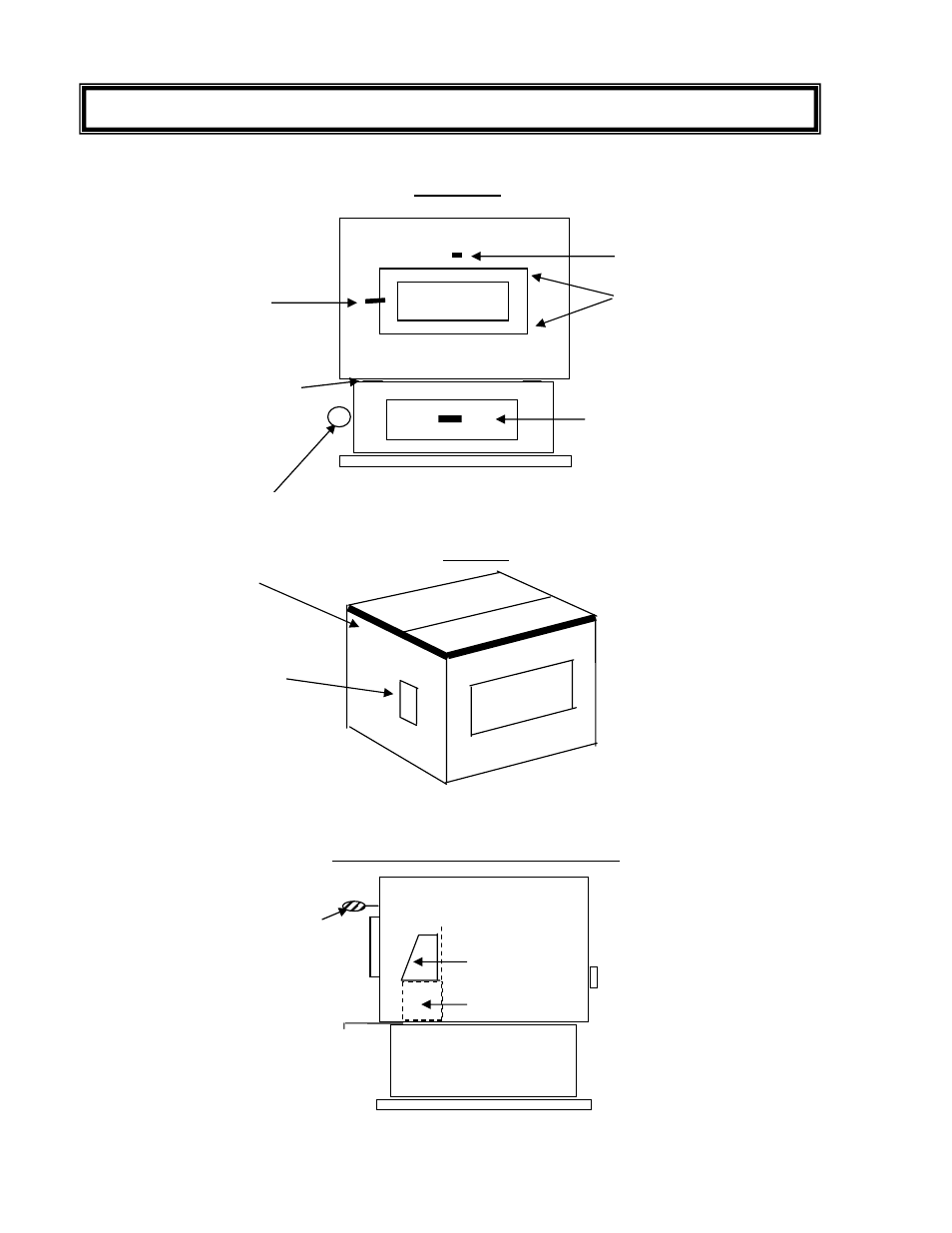

Front view
left view
Side view showing control operation
Adjustable Door Handle
lifts up and turns to the
right to open
Sliding heat exchanger tube cleaning
rod. Pull in and out to clean heat
exchanger tubes.
Adjustable hinges. Loosen locking
nut and move in or out to adjust.
Pedestal Ash Pan
Pull out to empty ash pan. Make sure
that the ash pan is up against the seal
on the pedestal when in place.
Ash clean outs Pull out to
empty ashes out of firebox area
and back heat exchanger area.
Make sure to push all the way in
when done.
Left Side
Circuit Board control panel.
Select heat and fuel stirrer
settings for heat desired.
Manual Draft Adjustment control knob.
Turn horizontal to decrease or Vertical
to increase draft
Slide Heat Exchanger Tube cleaning
rod in and out to clean tubes
shown pulled out NOTE: Always
push in to operate unit.
Ash Cleanouts located on the left and
right side of the front of unit. Slide out
for cleaning. Shown in the pulled out
Position NOTE:
Always push back in to operate unit.
STOVE CONTROLS
There is a scraper provided with the
unit for cleaning out the ash. There is
a hole in one end for hooking onto the
front heat exchanger tube rod for
cleaning if the unit is hot.
If you want to, you can purchase an
adhesive back hook and place it on
the back panel of the unit to store the
scraper tool. This can be purchased
at any local hardware store.
Firepot cradle
Combustion
Enhancement
System
The combustion enhancement
system sits on top of the Firepot.
When starting the fire use the
scraper tool and remove the CES to
expose the firepot. Make sure that
there is not fuel or ashes on top of
the firepot flange when re-installing
the combustion enhancement
system.
The combustion enhancement
system must be in place when
operating the furnace.
