American Energy Systems BC7000 Auger Housing - Manual (Page 2)

F:\AESBusinessSystems\AES Technical\Piece part instructions\BC7000 Auger Housing
Assembly.doc

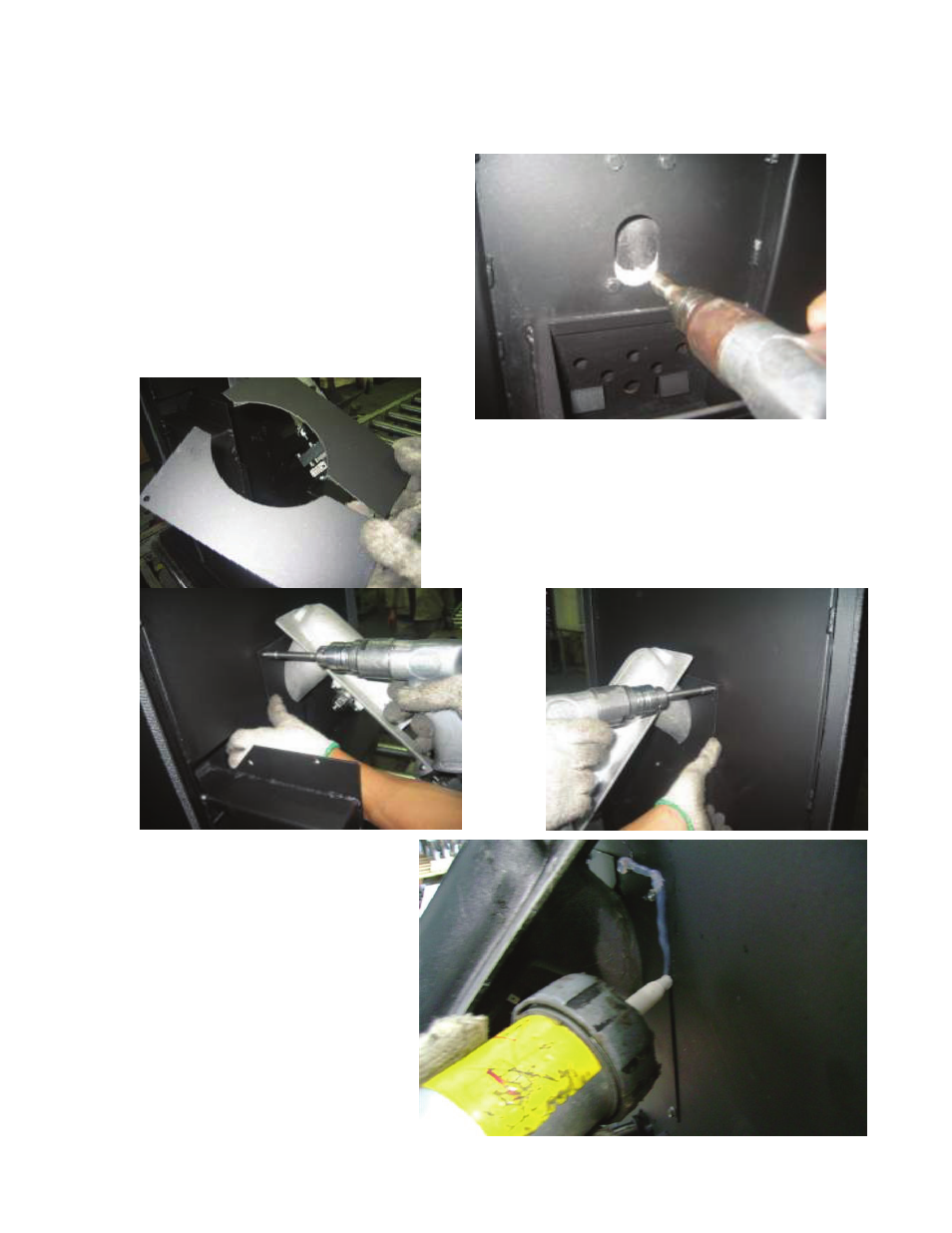

• Tighten the auger housing bolts using a wrench.
o
Tighten the top two bolts in the
order shown.
o
Tighten the lower two bolts in
the order shown.
• Install the split collars removed earlier around
the auger housing using the 4 tek screws.
• Apply silicon around the edges
of the air shell, igniter collar,
air inlet pipe, and room air
blower bracket. Smooth all
seams with your finger.
• Apply silicon around the auger
housing and around the edges
of the split collars this holds
the insulation tight around the
housing and the seals any air
gaps around the collars.
2
4 3
1
Always tighten the
bolts in this order to
insure consistent
alignment of the fuel
feed system
QC must inspect
the seams now!
They cannot be
inspected later
because they will
be covered by
insulation
