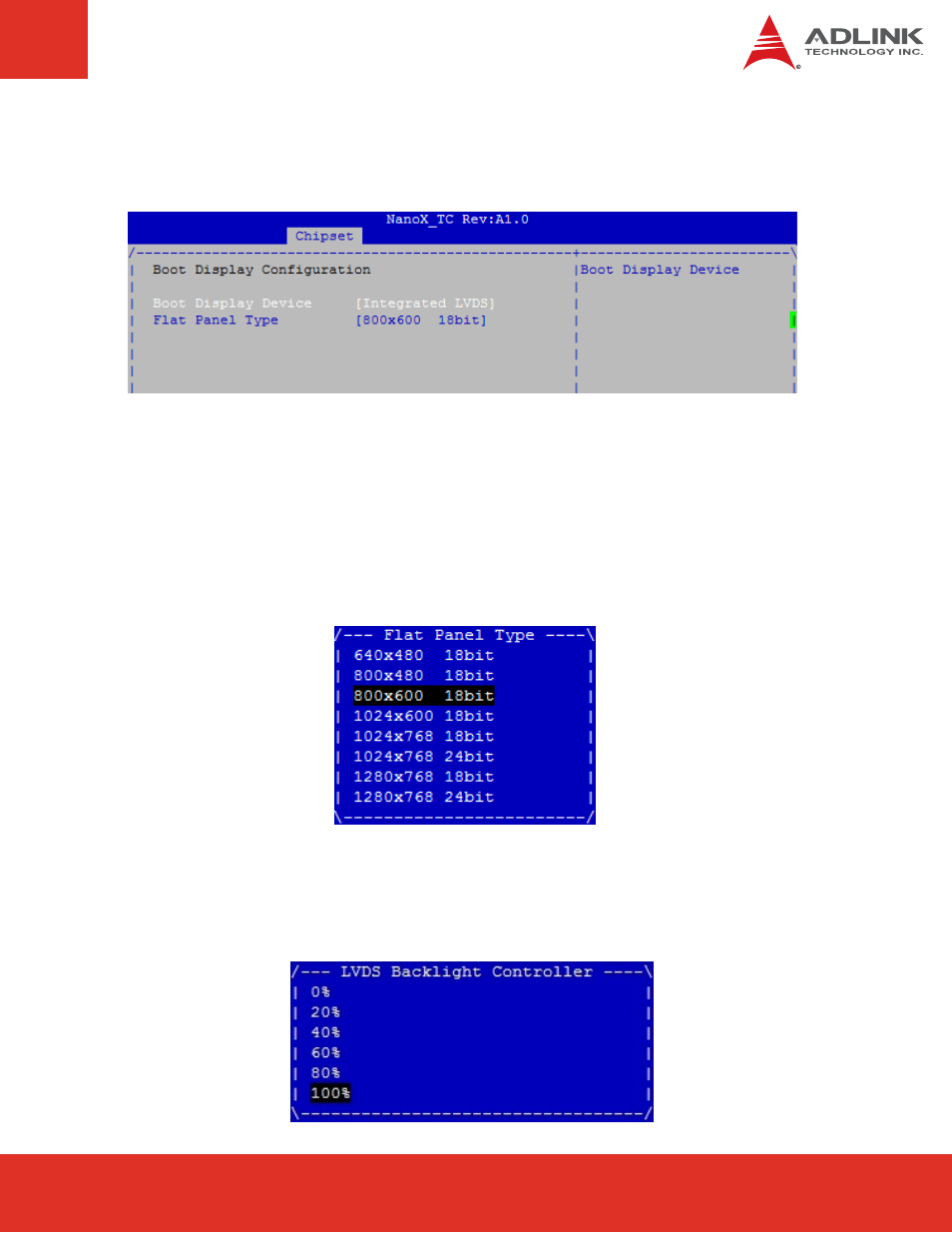

Boot Display Configuration
Boot Display Device
Select the boot display device. Options: Auto, Integrated LVDS, or External DVI/HDMI
(SDVO).
Flat Panel Type
When LVDS is selected from Boot Display Device, this option allows you to select resolution
settings as below:
LVDS Backlight Control
When LVDS is selected from Boot Display Device, this option allows you to select LVDS
Backlight settings as below:
