nanoX-TC User’s Manual Page 38

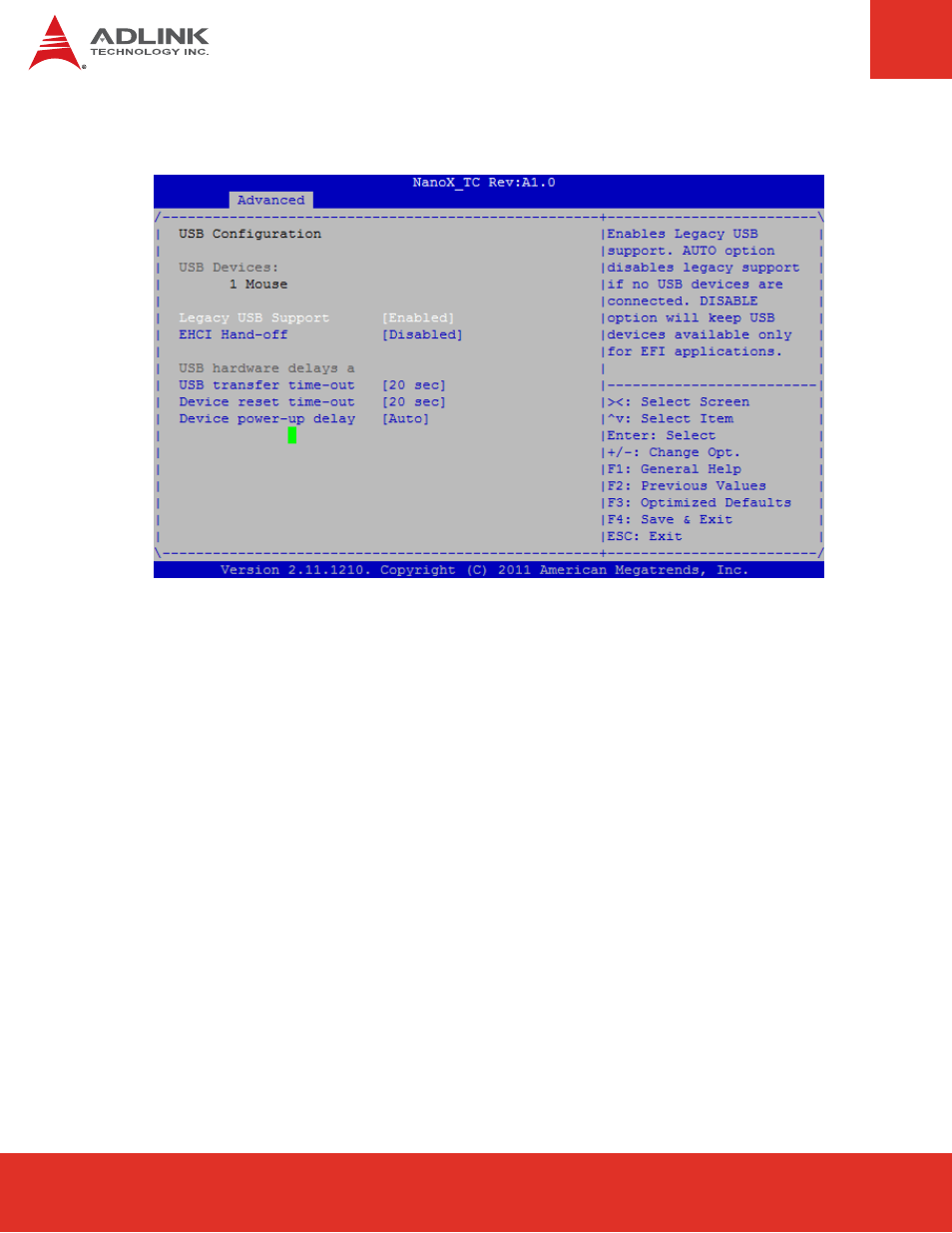

8.4.4 USB Configuration
Legacy USB Support
Enables legacy USB support. Auto option disables legacy support if no USB devices are
connected. Disable option will keep USB devices available only for EFI applications. Set this
value to Enabled/Disabled/Auto.
EHCI Hand-off
This is a workaround for OS without EHCI hand-off support. The EHCI ownership change
should be claimed by EHCI driver. Set this value to Enabled/Disabled.
USB transfer time-out
The time-out value for control, bulk, and interrupt transfers.Set this value to 1 sec / 5 sec /
10 sec / 20 sec.
Device reset time-out
USB mass storage device start unit command time-out. Set this value to 10 sec / 20 sec / 30
sec / 40 sec.
Device power-up delay
Maximum time the device will take before it properly reports itself to the host controller. 'Auto'
uses default value: for a root port it is 100 ms, for a hub port the delay is taken from hub
descriptor. Set this value to Auto/Manual.
