6.3 Hardware Monitoring
To ensure system health of your embedded system ADLINK’s COM Express modules come
with built in support for monitoring and control of CPU and system temperatures, fan speed
and critical module voltage levels.
The AIDI Library provides simple APIs at the application level to support these functions and
adds alarm functions when voltage or temperature levels exceeds the upper or lower limit set
by the user.
On the nanoX-TC the following monitored values can be read from the module:
CPU temperature, system temperature, Vcore, 1.8 V, 5 V, 3.3 V and 12 V.

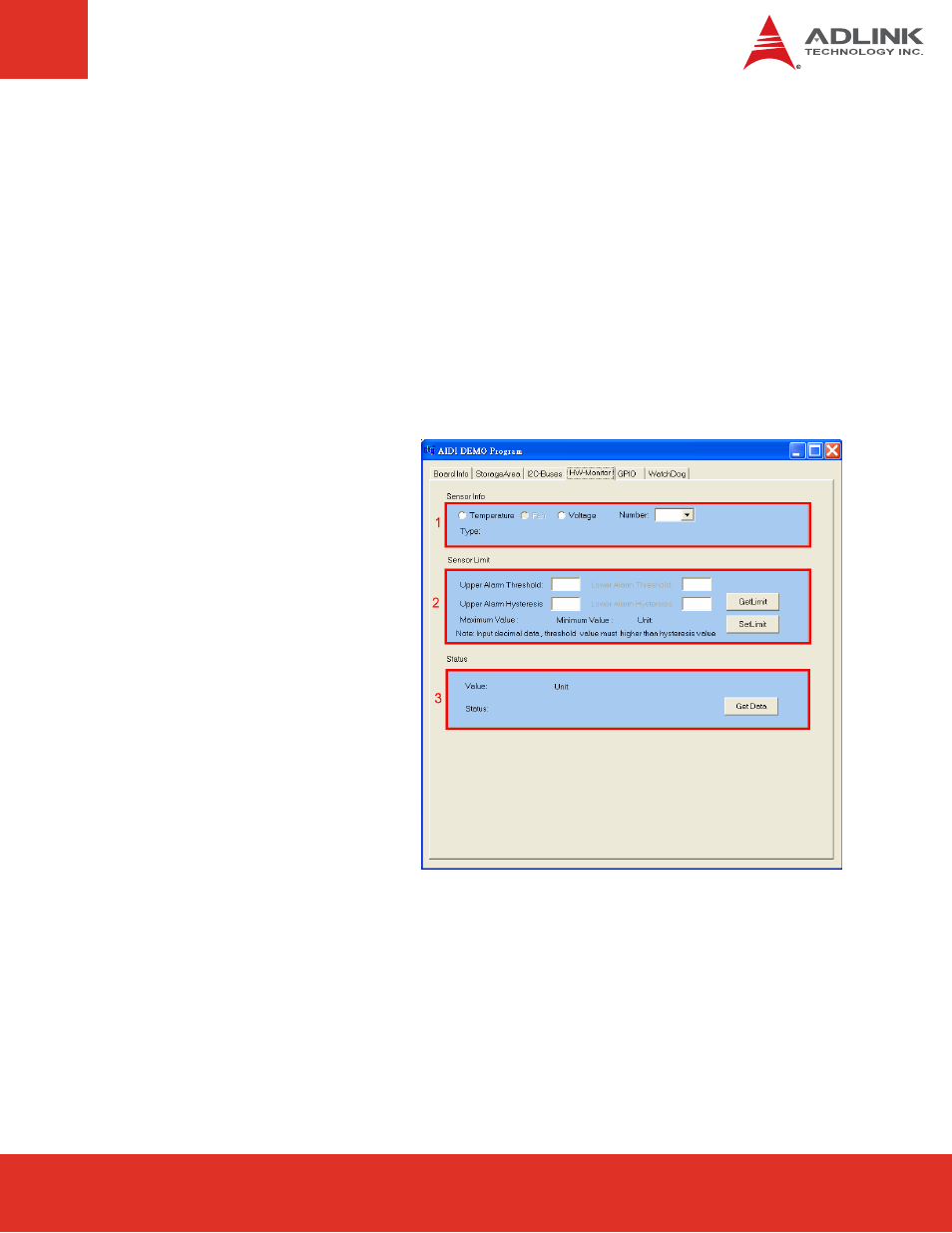

AIDI Demo Program
- HW Monitor Tab
Field 1 displays detected
sensors (number).
Field 2 allows setting of upper
and lower alarm limits.
Field 3 displays read out
information of sensors.
