nanoX-TC User’s Manual

Page 44

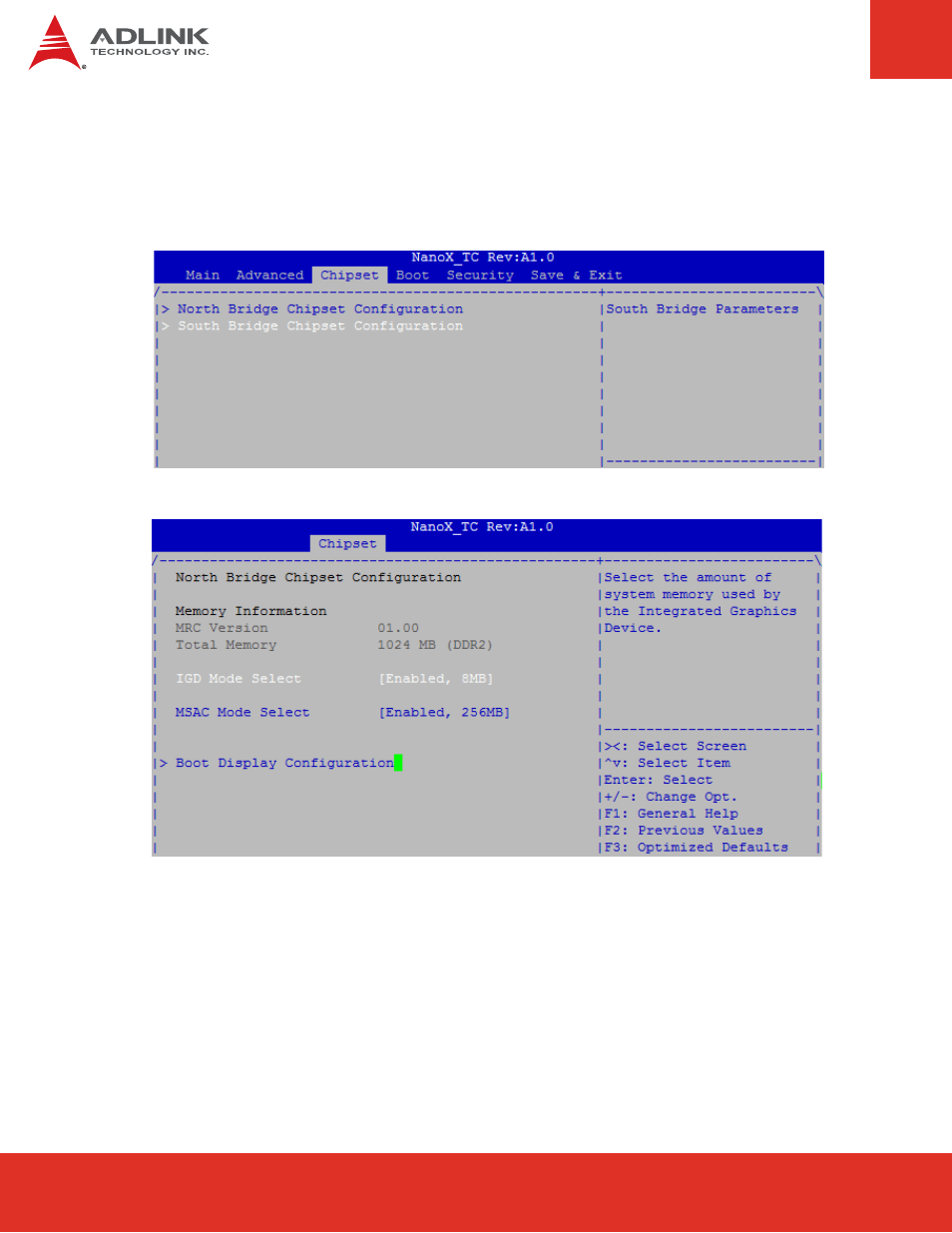

8.5 Chipset Configuration

Select the Chipset tab from the setup screen to enter the Chipset BIOS Setup screen. You
can select any of Chipset BIOS Setup options by highlighting it using the < Arrow > keys. The
Chipset BIOS Setup screen is shown below.

8.5.1 North Bridge Chipset Configuration

IGD Mode Select

Select the amount of system memory used by the integrated graphics device.
Options: Disable/1M/4M/8M/16M/32M/48M/64M.

MSAC Mode Select

Select the size of the graphics memory aperture and untrusted space. Used by the
integrated graphics device. Options: 512M/256M/128M.
