tBP-VPX6000 Switches and Jumpers

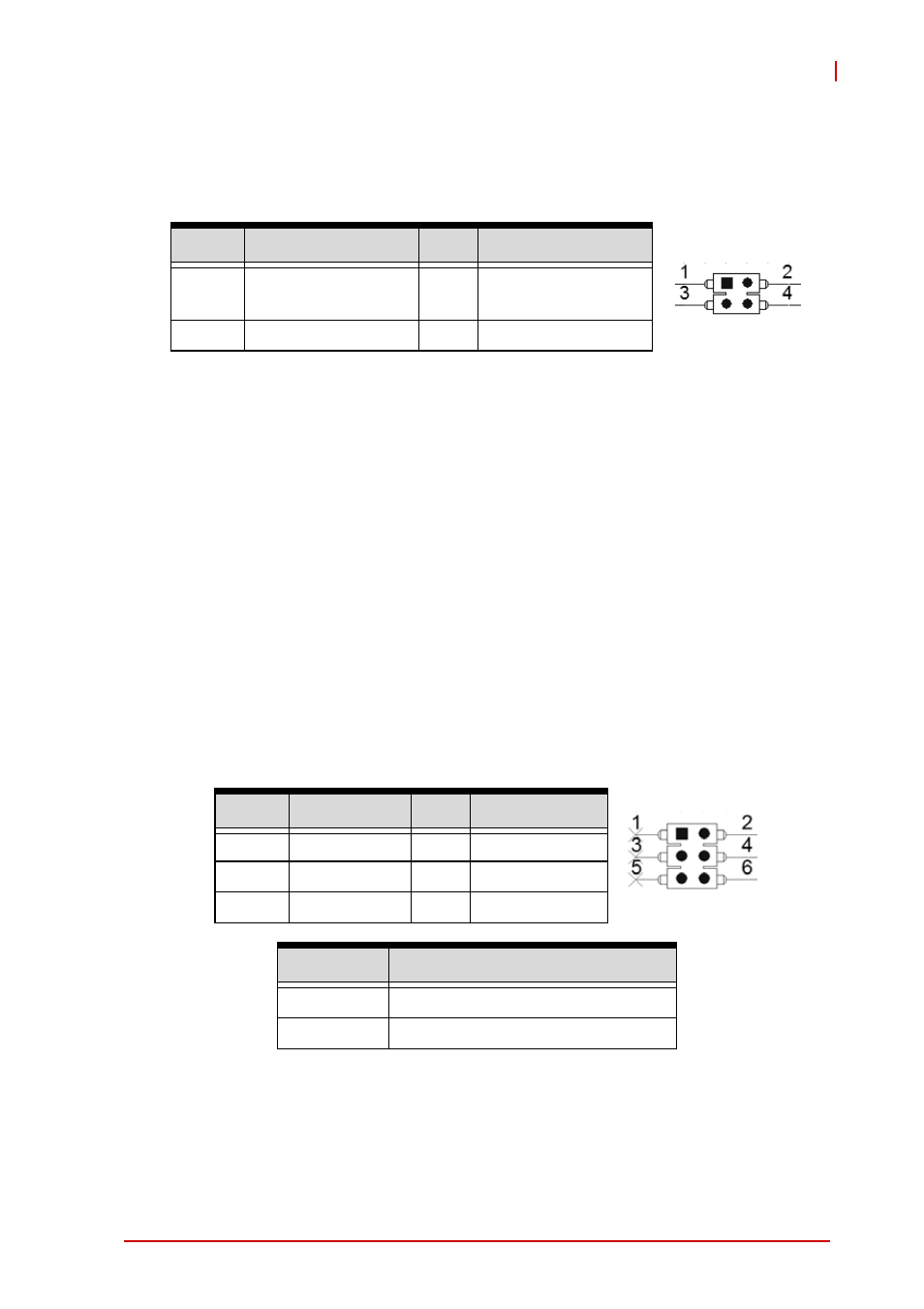

BIOS Select Jumper (JP5)

Reset Buttons

X

SW1: System Reset Button

X

SW2: Maskable Reset Button

X

SW3: Node A Reset Button

X

SW4: Node B Reset Button

Power Buttons

X

SW5: Node A Power Button

X

SW6: Node B Power Button

X

SW7: System Power Button

Non-Volatile Memory Read-Only (NVMRO) Jumper (JP2)

Pin

Signal

Pin

Signal

1

Node A Boot from

RTM BIOS select

2

Node B Boot from

RTM BIOS select

3

GND

4

GND

Pin

Signal

Pin

Signal

1

NC

2

P3V3_AUX

3

NC

4

NVMRO

5

NC

6

GND

Shorted

Signal

2-4

NVMRO

Normal (default)

4-6

NVMRO disable
