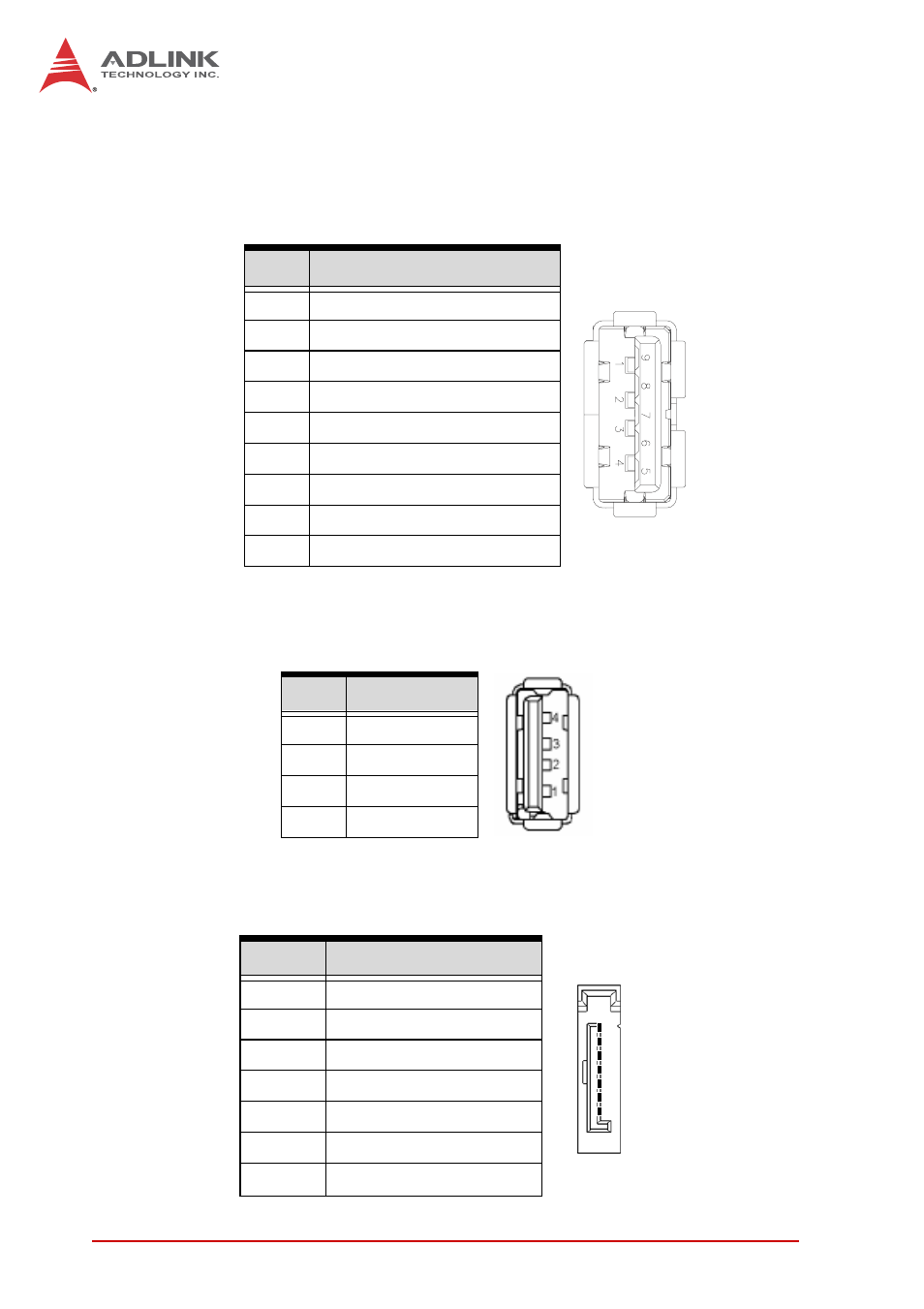

tBP-VPX6000 Connector Pin Assignments

USB 3.0 Connector
Node A: CN61, CN63; Node B: CN65,CN67

USB Connectors
Node A: CN62,CN64; Node B: CN66,CN68

SATA 7-pin Connector
(Node A: CN55~CN57; Node B CN58~CN60)

Pin #

Signal Name

1

+5V

2

Data-

3

Data+

4

GND

5

RX_N

6

RX_P

7

GND

8

TX_N

9

TX_P

Pin # Signal Name

1

Vcc

2

USB-

3

USB+

4

GND

Pin #

Signal

1

GND

2

TXP

3

TXN

4

GND

5

RXN

6

RXP

7

GND
