20 Board Interfaces

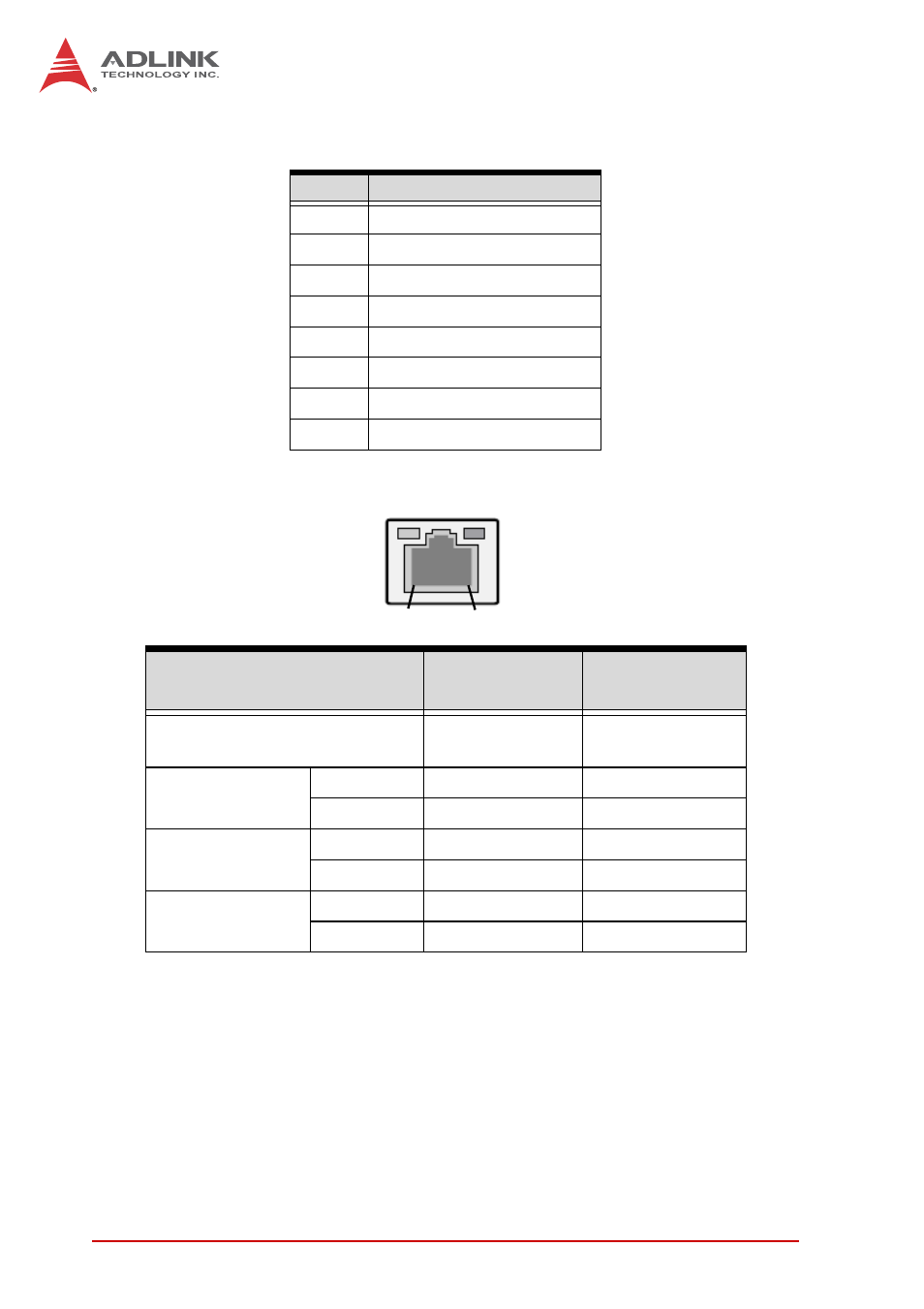

RJ-45 Gigabit Ethernet Connectors (CN9 and CN10)
LAN LED Status Definitions
Pin # 1000BASE-T
1 BI_DA+
2 BI_DA-
3 BI_DB+
4 BI_DC+
5 BI_DC-
6 BI_DB-
7 BI_DD+
8 BI_DD-
Status
Speed LED
(Green/Yellow)
Activity LED
(Green)
Network link is not established
or system powered off
OFF OFF
10 Mbps
Link OFF ON
Active OFF Blinking
100 Mbps
Link Green ON
Active Green Blinking
1000 Mbps
Link Orange ON
Active Orange Blinking
Activity Speed
