Board Interfaces 43
VPX6000

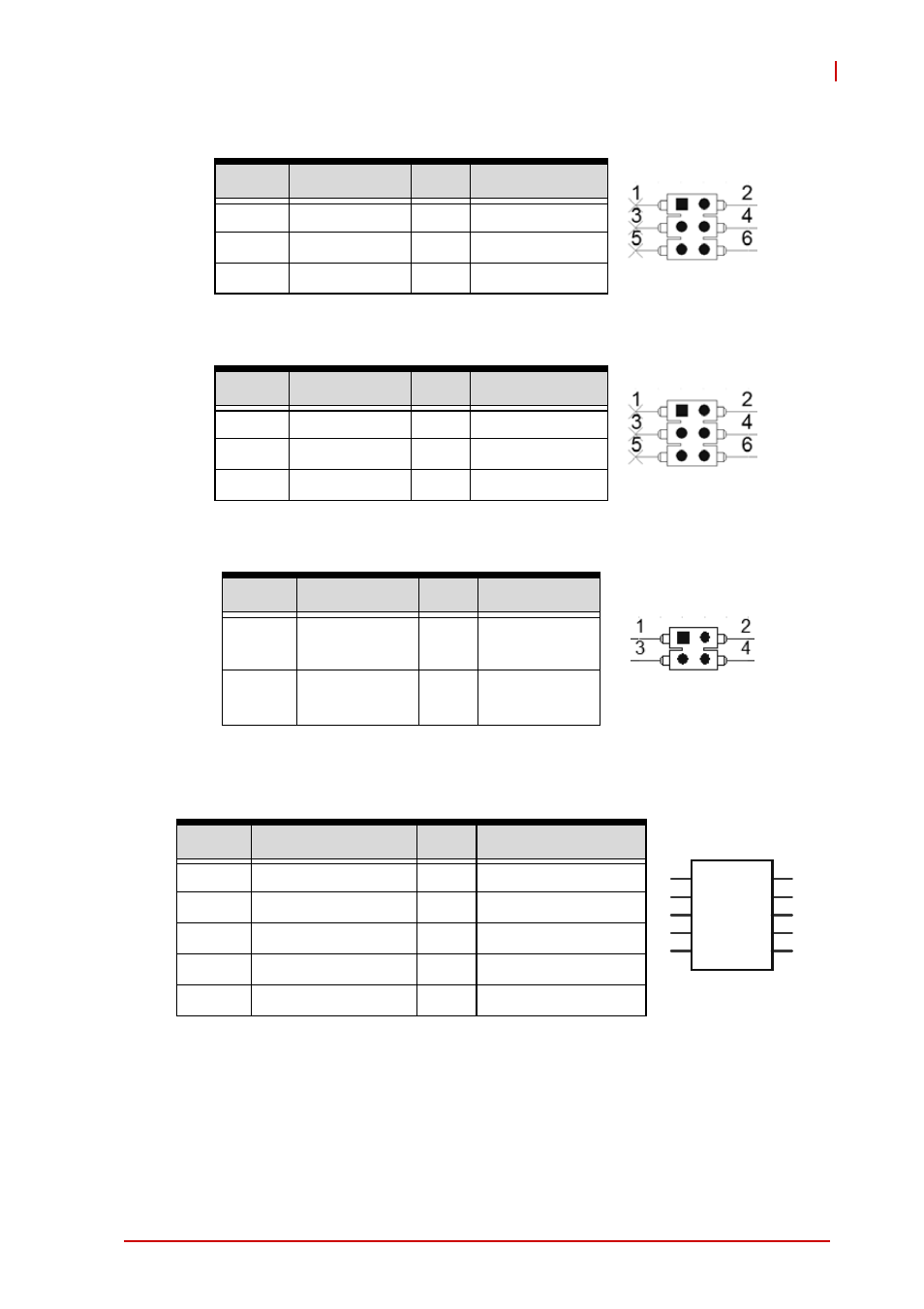

IPMC JTAG Connector (JP9)
VPX JTAG Connector (JP11)
Speaker Out Connector (JP7)
COM Connector
Node A: CN87; Node B: CN88
Pin Signal Pin Signal
1 TDI 2 TCK
3 TDO 4 RST
5 TMS 6 GND
Pin Signal Pin Signal
1 TDI 2 TCK
3 TDO 4 RST
5 TMS 6 GND
Pin Signal Pin Signal
1
Node A
SPK OUT +
2
Node B
SPK OUT +
3
Node A
SPK OUT -
4
Node B
SPK OUT -
Pin Signal Pin Signal
1 P3V3 2 GND
3 NC 4 LPC_AD3
5 PLTRST_LPC-L 6 LPC_AD2
7 CLK 33MHz 8 LPC_AD1
9 LPC_FRAME 10 LPC_AD0
1
1
3
3
5
5
7
7
9
9
2
2
4
4
6
6
8
8
10
10
