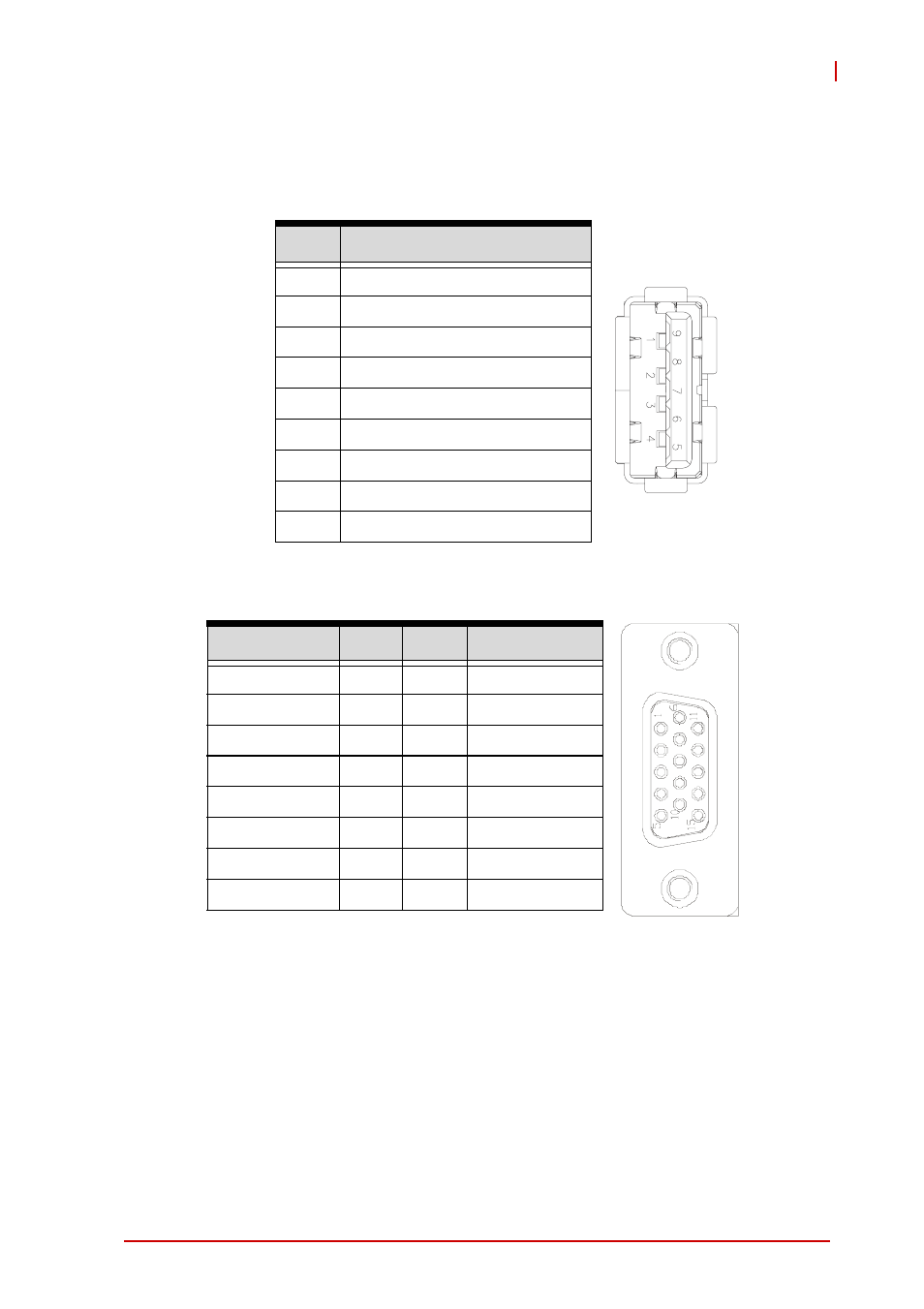

background image

Board Interfaces

19

VPX6000

4.2

VPX6000 Onboard Connector Pin Assignments

USB 3.0 Connector (Node A: CN3; Node B: CN12)

DB-15 VGA Connector (Node A: CN1; Node B: CN6)

Pin #

Signal Name

1

+5V

2

Data-

3

Data+

4

GND

5

RX_N

6

RX_P

7

GND

8

TX_N

9

TX_P

Signal Name Pin # Pin # Signal Name

Red

1

2

Green

Blue

3

4

N.C.

GND

5

6

GND

GND

7

8

GND

+5V.

9

10

GND

N.C.

11

12

CRTDATA

HSYNC

13

14

VSYNC

CRTCLK

15
