• Power Supply Unit
•
Operating temperature: 0°C to 70°C

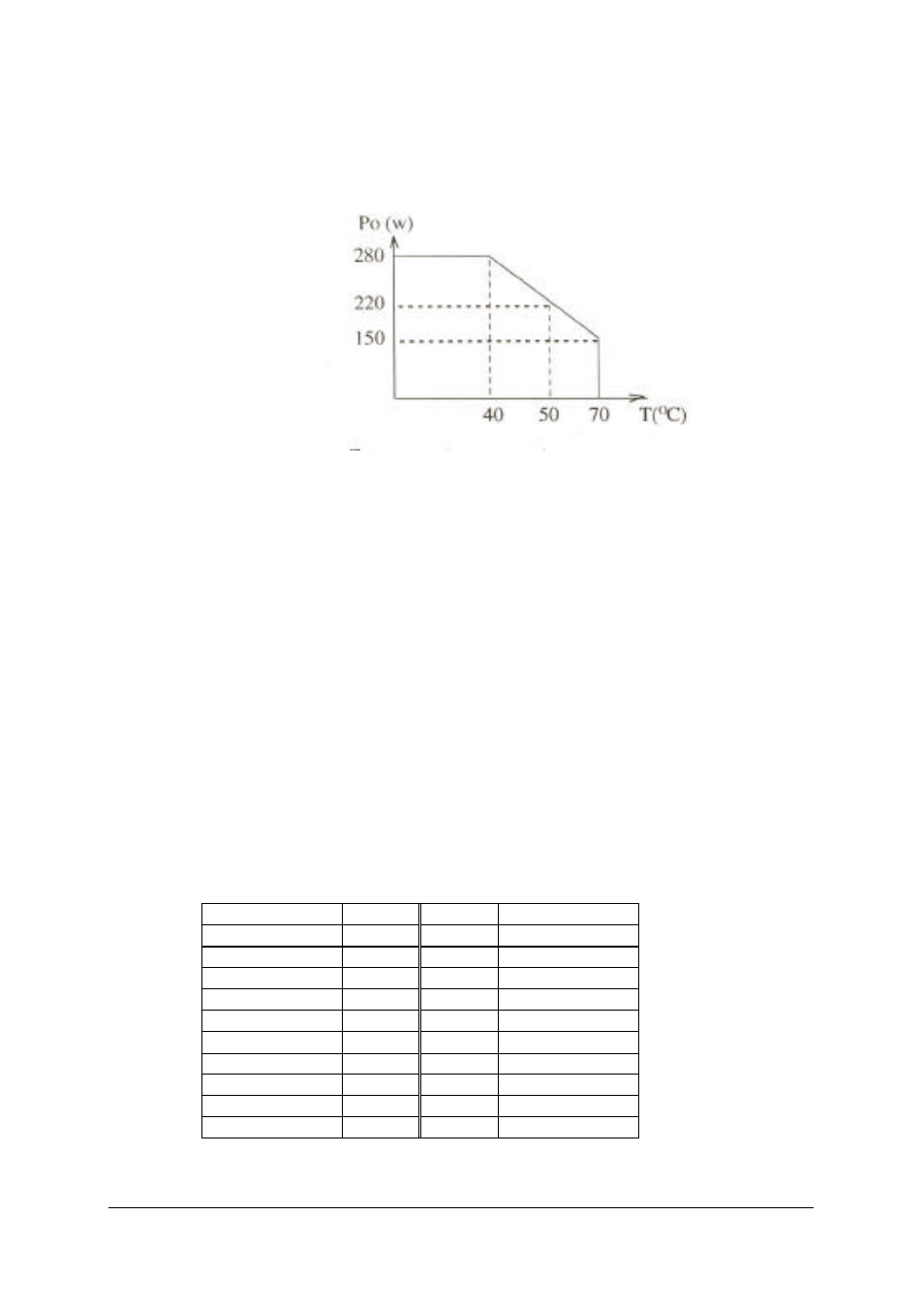

When the ambient temperature is over 40°C (115V/230V) , the
output power should be de-rated as following curve:
•
Storage temperature: -40°C to +75°C
•
Operating humidity: The power supply can operate from 5%
humidity to 95% humidity non-condensing at 40°C
u
Regulatory Agency Certification
•
Safety standards: Designed to meet the following standards:
UL 1950
CSA 22.2 NO.234
EN 60950
•
EMI standards: Designed to meet the following radiated limits:
FCC class “B”
EN55022 class ”B”
•
EMS standards: Designed to meet the following standards:
IEC-801-2 8KV air discharge
IEC-801-3 3V/M
IEC-801-4 2KV
IEC-801-5 2KV
u
ATX Power Connector definition
Signal
Pin No. Pin No.
Signal
+3.3V
1
11
+3.3V
+3.3V
2
12
-12V
GND
3
13
GND
+5V
4
14
PS_ON
GND
5
15
GND
+5V
6
16
GND
GND
7
17
GND
PWR_OK
8*
18
-5V
+5V SB
9*
19
+5V Sense
+12V
10
20
+5V
