5.2 Hard Drive Installation
The cPCI-6870 and cPCI-R6001D provide space to install a slim
type 2.5” Serial-ATA hard drive.
Installing a SATA Hard Drive - cPCI-6870

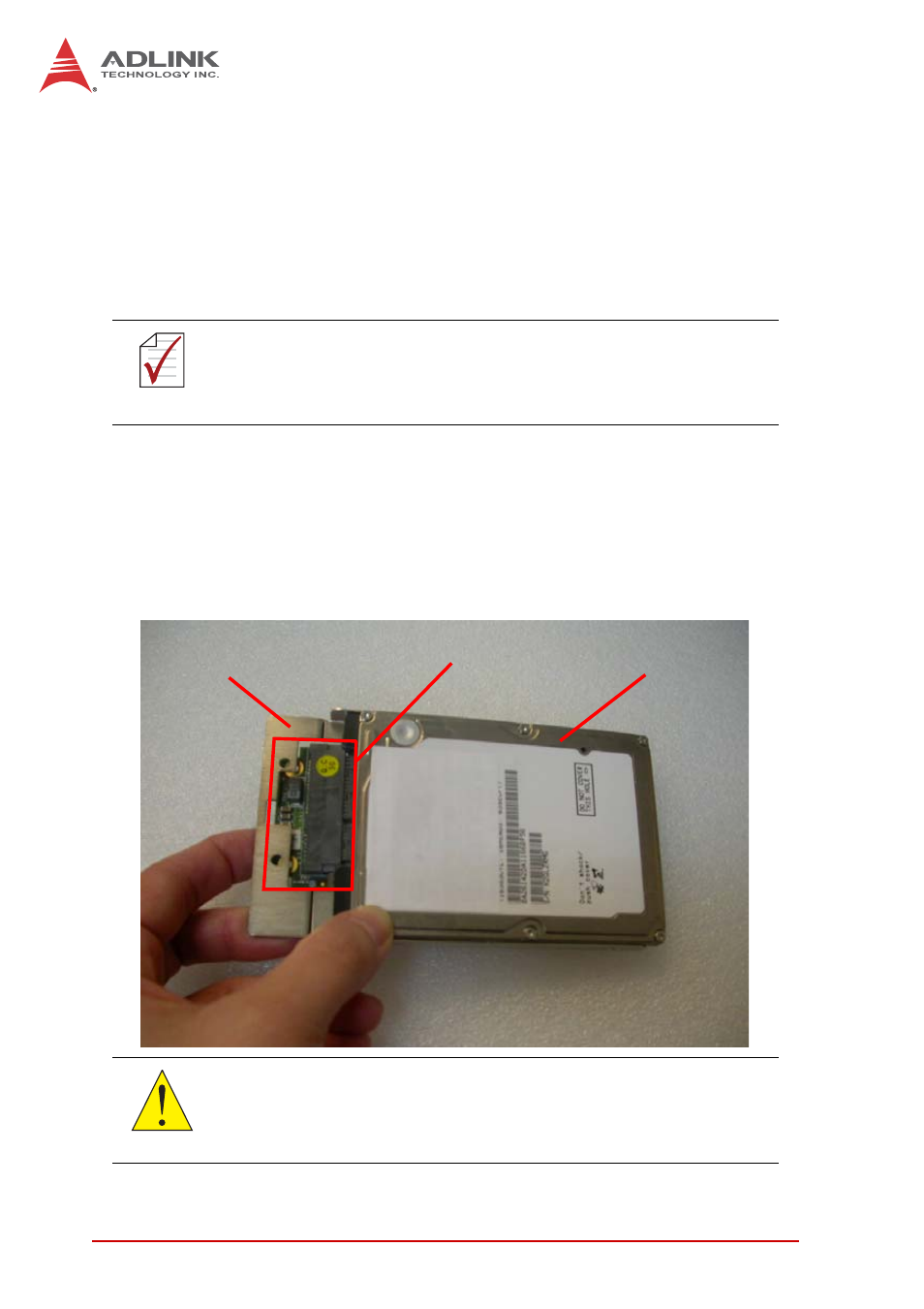

1. Attach the DB-6920SAT adapter board to the SATA hard
drive connectors. Position the hard drive on the HDD
bracket provided as shown below. Be sure the adapter
board is under HDD bracket to avoid damaging the hard
drive connectors.
NOTE: NOTE:
Install a CF card to the cPCI-6870 before installing the hard
drive (see “Installing a CF card – cPCI-6870” on page 52).
CAUTION:
Make sure the adapter board is under the HDD bracket to
avoid damaging the hard drive connectors.
HDD Bracket SATA HDD
DB-6920SAT
