46 Board Interfaces

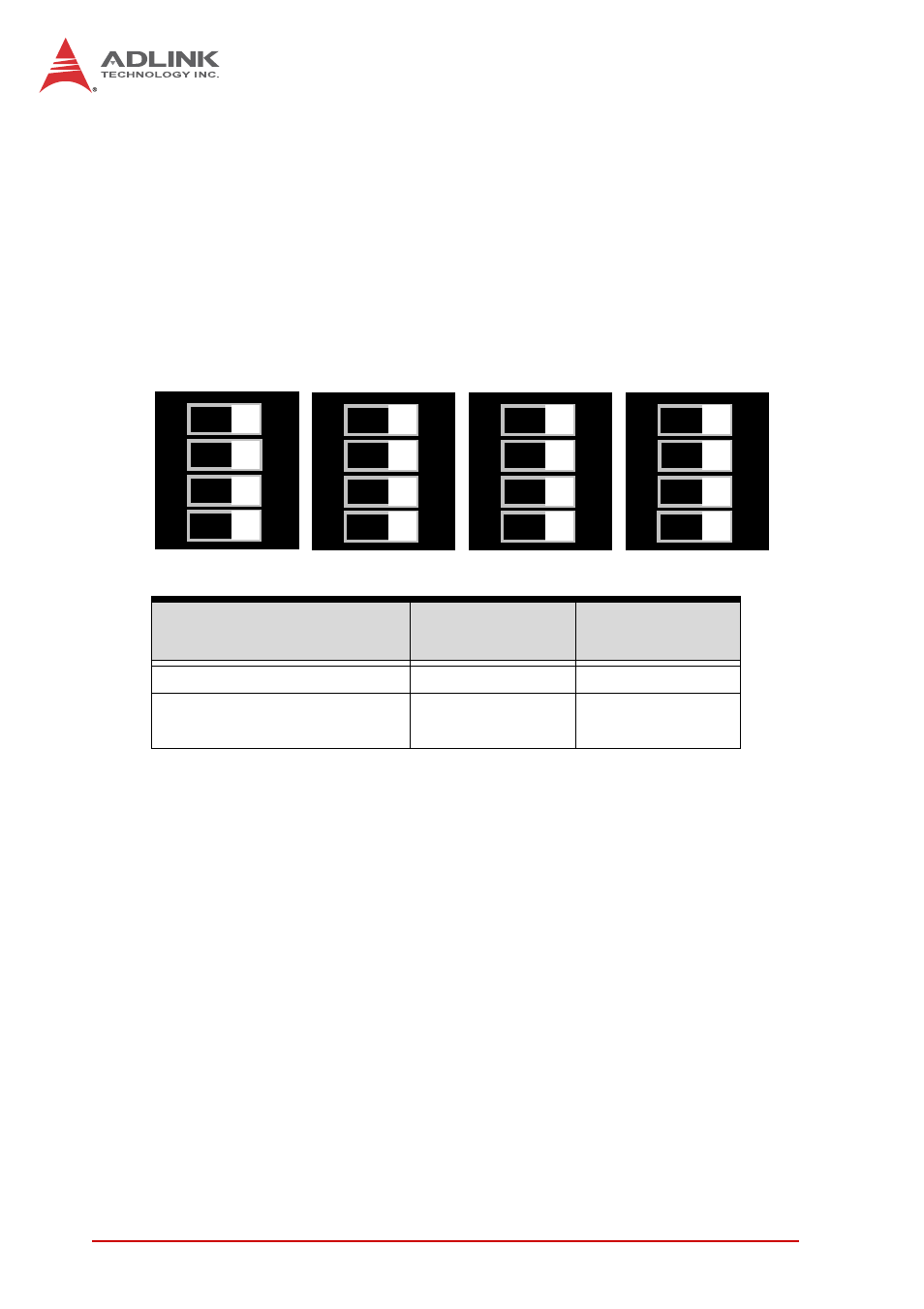

PICMG 2.16 Switches (SW1-R,SW2-R, SW3-R, SW4-R)
The RTM supports GbE3 and GbE4 on either the 2.16 back-
plane or via rear I/O. The PICMG® 2.16 backplane and rear I/O
cannot be accessed simultaneously. Switches SW1-R to
SW4-R must be set to connect GbE3 and GbE4 to either the
2.16 backplane or to the RTM. The following table shows how
to set the switches to enable GbE3 and GbE4 for either the
2.16 backplane or the RTM. All switches are set to ON by
default (rear I/O).
Table 4-31: PICMG 2.16 Switch Settings
IPMC Mode Switch (SW6)
Switch SW6 is for debugging-purpose only and set to All OFF
by default. Please do NOT change settings.
Connect GbE3/4 to
GbE3
(SW1-R, SW2-R)
GbE4
(SW3-R, SW4-R)
PICMG® 2.16 Backplane All OFF All OFF
Rear faceplate RJ-45
connectors (default)
All ON All ON
SW1-R SW2-R SW3-R SW4-R
ON
1
2
3 4
ON
1
2
3 4
ON
1
2
3 4
ON
1
2
3 4
