Board Interfaces 41
cPCI-6870
CompactPCI J5 Pin Assignment

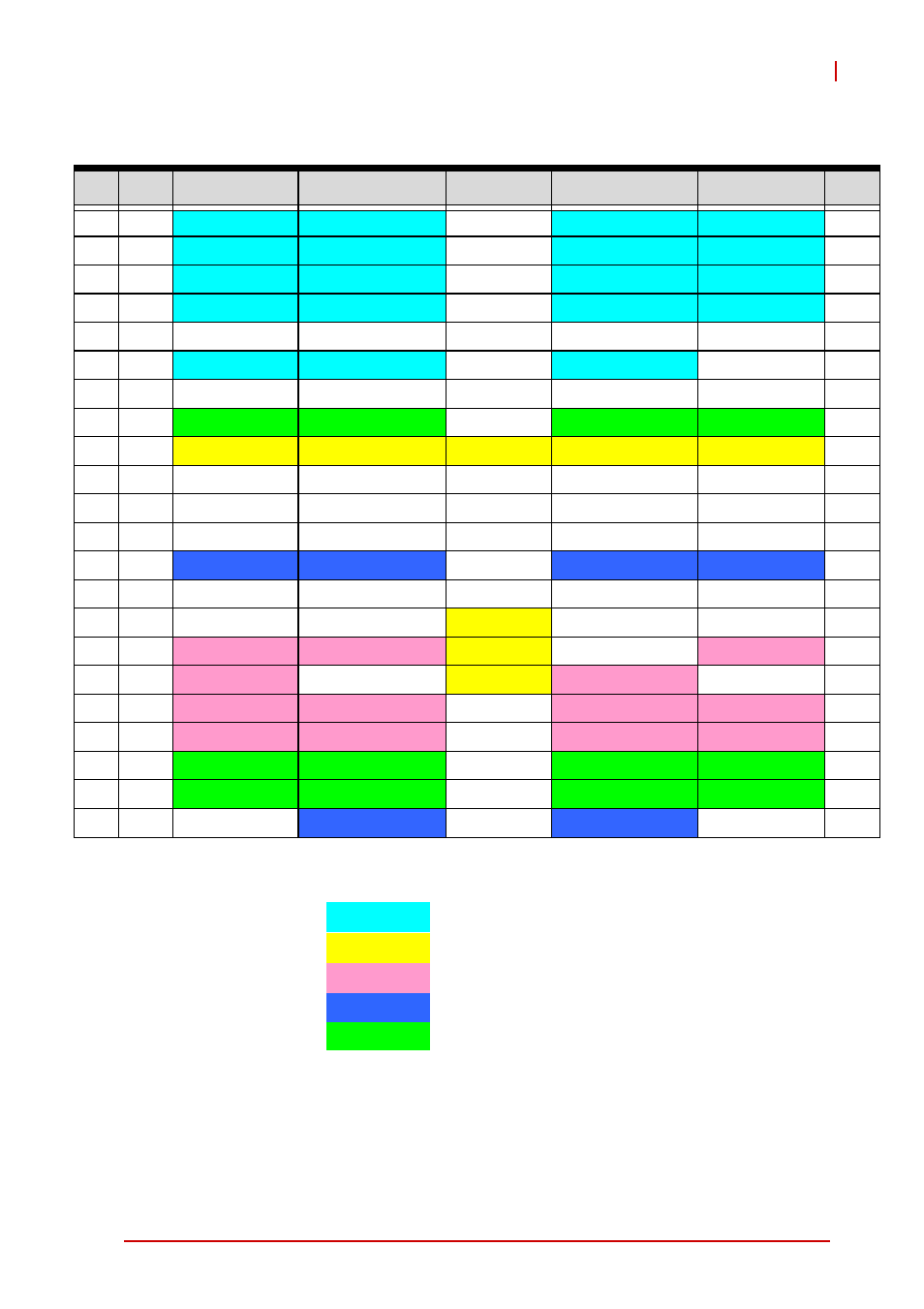

Table 4-24: CompactPCI J5 Connector Pin Definition
Pin Z A B C D E F
1 GND PCIE-TX0+ PCIE-TX0+ GND PCIE-RX0+ PCIE-RX0- GND
2 GND PCIE-TX1+ PCIE-TX1- GND PCIE-RX1+ PCIE-RX1- GND
3 GND PCIE-TX2+ PCIE-TX2- GND PCIE-RX2+ PCIE-RX2- GND
4 GND PCIE-TX3+ PCIE-TX3- GND PCIE-RX3+ PCIE-RX3- GND
5 GND GND GND GND GND GND GND
6 GND PCIE-CLK+ PCIE-CLK- GND RESET# RTM_IN# GND
7 GND GND GND RTC GND GND GND
8 GND LVDS_DATA3- LVDS_DATA3+ NC LVDS_CLK LVDS_DATA GND
9 GND GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GND
10 GND NC NC GND NC NC GND
11 GND NC NC GND NC NC GND
12 GND NC NC NC NC NC GND
13 GND LAND_100# LANC_100# NC LANC_1G# LAND_1G# GND
14 GND NC NC GND NC NC GND
15 GND NC NC GPIO6 NC NC GND
16 GND MTR0# INDEX# GPIO7 NC DENSEL# GND
17 GND DIR# NC GPIO8 DRVA# NC GND
18 GND TRK0# WGATE# DETECT# WDATA# STEP# GND
19 GND DSKCHG# HDSEL# NC RDATA# WRPORT# GND
20 GND LVDS_DATA0- LVDS_DATA0+ GND LVDS_DATA1- LVDS_DATA1+ GND
21 GND LVDS_DATA2- LVDS_DATA2+ GND LVDS_CLK- LVDS_CLD+ GND
22 GND NC LAND_LINK_ACT# +3.3V LANC_LINK_ACT# +3.3V GND
LVDS
PCI-Express x4
GPIO
Ethernet port
Floppy
