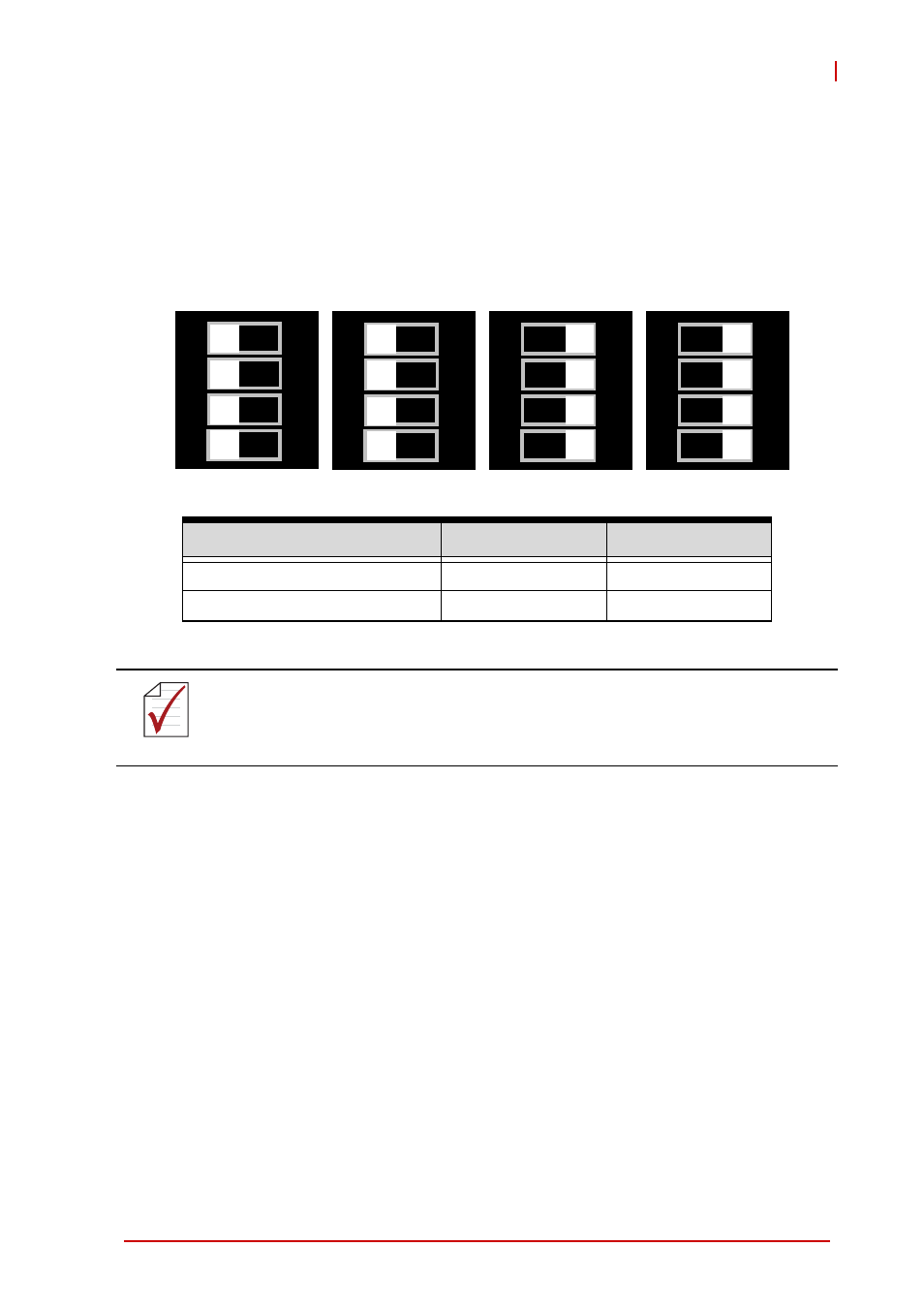

COM/VGA Mode Selection Switches (SW7-8, SW12-13)*
The front panel RJ-45 port (CN11) is designed to support
RS-232 or VGA output by connecting separate adapter cables.
CN11 is set to RS-232 COM port by default. Please note that if
VGA mode is selected, switch SW10 should be set to Front
VGA mode.
Table 4-30: COM/VGA Mode Selection Switch Settings
Mode SW7, SW8 SW12, SW13
COM Mode All OFF All ON
VGA Mode All ON All OFF
NOTE: NOTE:
* VGA is not supported the front panel RJ-45 connector (CN11) of models with
ordering numbers ending in “xx30” and higher. On these models, VGA is
directly routed to the RTM, the RJ-45 connector is a dedicated serial port,
switches SW7-8 and SW12-13 are not installed.
SW7 SW8 SW12 SW13
ON
1
2
3 4
ON
1
2
3 4
ON
1
2
3 4
ON
1
2
3 4
