4 Board Interfaces
4.1 cPCI-6870 SBC Board Layout

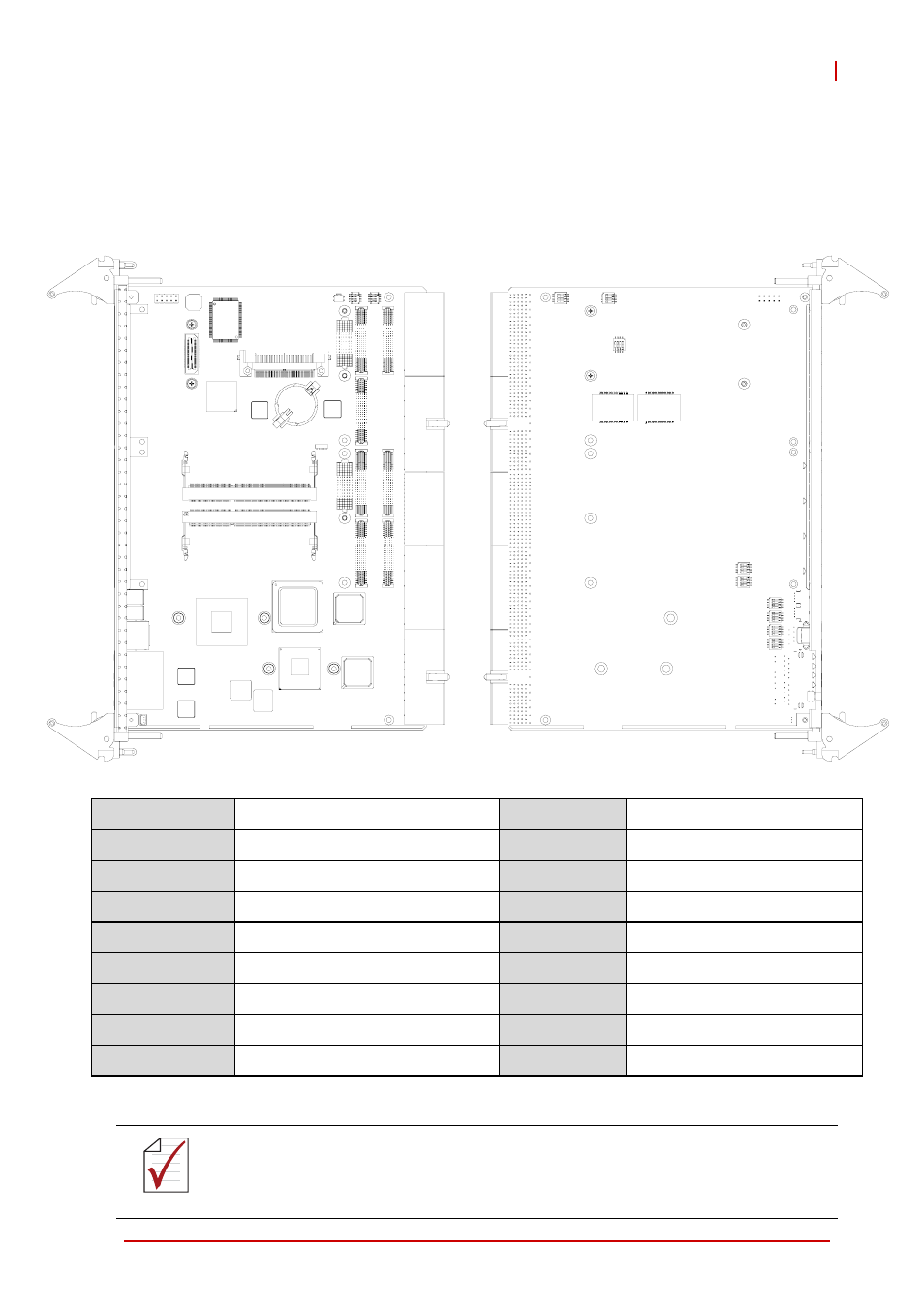

Figure 4-1: cPCI-6870 SBC Board Layout
U26 CPU CN3 SATA adapter card conn.
U18 North Bridge GS45 CN7/8 SO-DIMM socket
U3 South Bridge ICH9M-SFF CN9/10 USB ports
U16/28 PCIe to PCI Bridge CN11 COM/VGA port*
U4/5/29/39 Intel 82574L GbE controllers CN12 LAN ports
U15 PCIe Switch J1-J5 CompactPCI connectors
U1 Super I/O JN1-JN7 PMC connectors
CN2/6 XMC connectors SW1~13 Switches
CN4 CompactFlash socket SW4 Clear CMOS button
NOTE: NOTE:
* VGA is not supported on CN11 of models with ordering numbers ending in
“xx30” and higher. On these models, VGA is directly routed to the RTM and
the RJ-45 connector is a dedicated serial port.
