52 HSL Slave Modules
PCI-7856 
User’s Manual
The scan time needs 30.33 µs x 7. You may connect these mod-
ules with one master controller. The HSL-AI16AO2-M-VV module
connects to another master controller. The management table
below is for reference.

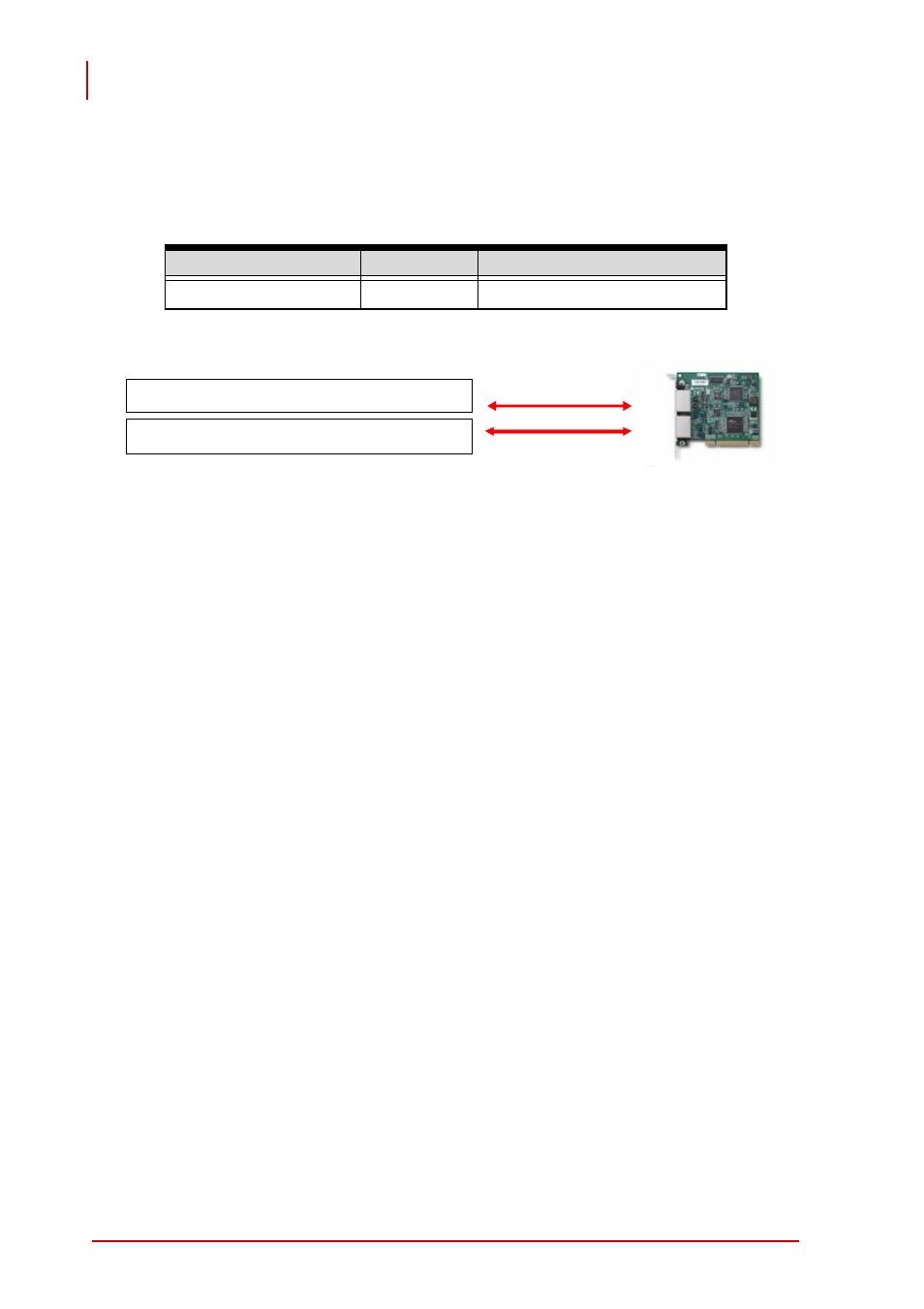

Refer to the illustration below.
The cycle time of the first master controller is 30.33 µs x 7, while
the cycle time of second master controller is 15.17 µs x 11 at 12
Mbps, full duplex mode.
Group 2 DIP Switch Index Occupation in HSL
HSL-AI16AO2-M-VV 1 1, 2
Group 1
Group 2
12 Mbps
6 Mbps
