HSL Slave Modules 29
PCI-7856
User’s Manual

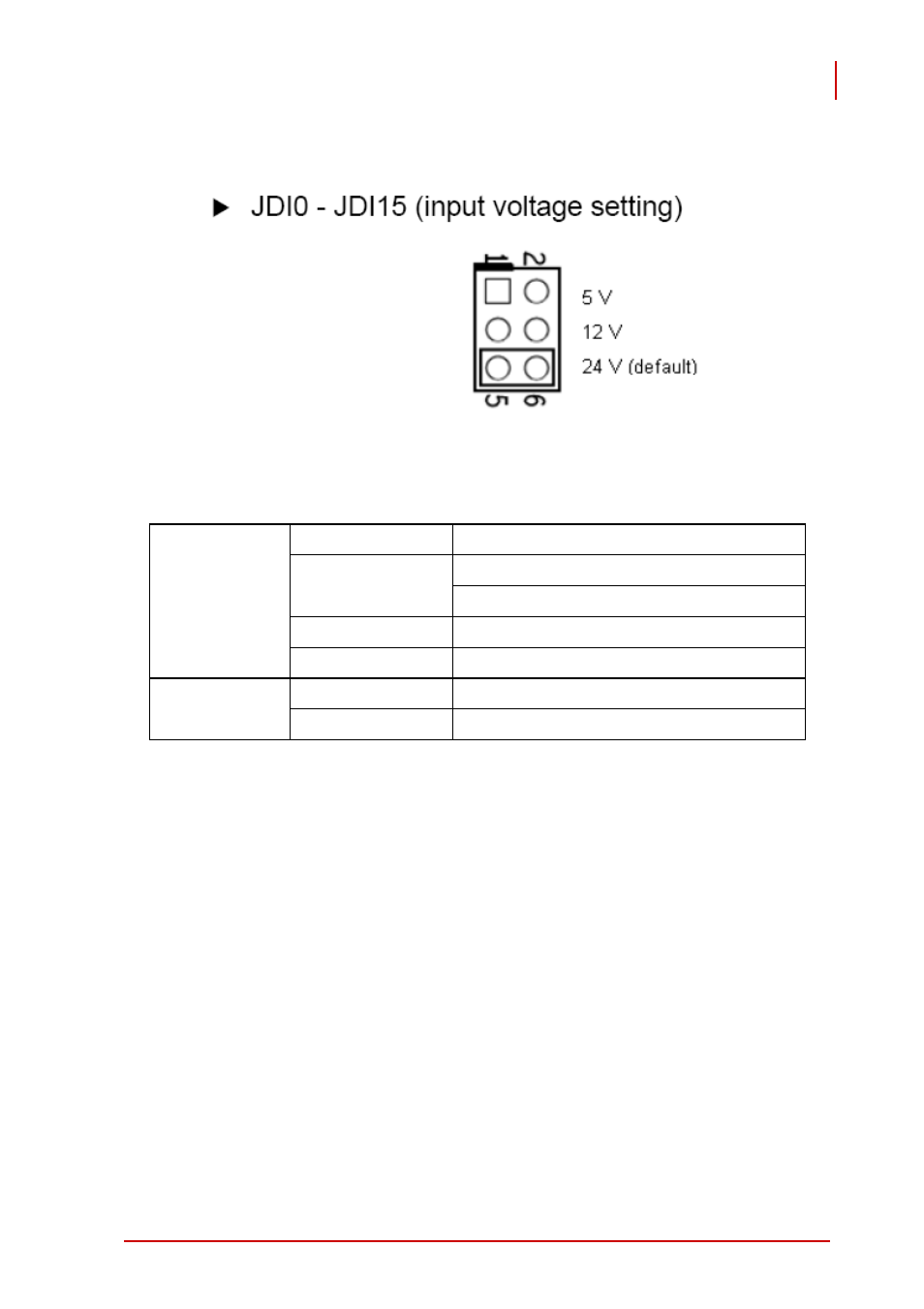

*Note: The HSL-DI16-UL supports 5 V, 12 V and 24 V, selected by
jumper for each channel:
4.2.2 Analog I/O Module
Table 4-6: Analog I/O Module
Analog Input
A/D Resolution 16-bit (14-bit guaranteed)
Input Range
For VV type: ±10 V, ±5, ±2.5, ±1.25 V
For AV type: 20 mA, 10 mA, 5 mA
A/D Conversion 10 μs
Signal Type 16-CH Single Ended; 8-CH Differential
Analog Output
D/A Resolution 16-bit
DA Settling Time 10 μs
