2 Introduction
PCI-7856 
User’s Manual
MNET and HSL features:

Flexible, comprehensive, extendable distributed motion and
I/O solution based on PC architecture or embedded plat-
form

Convenient wiring for remote distributed motion & I/O mod-
ules, including multiple-axes motion control module, single
axis motion control module, discrete I/Os and analog I/Os
 Space saving, reduced wiring and easier maintenance for
cost saving

Time-deterministic, fast scanning with hundreds of discrete
I/O points (up to 2,016 points)

Real-time and fast scanning to realize high-speed and high-
response motion control up to 256 axes support.

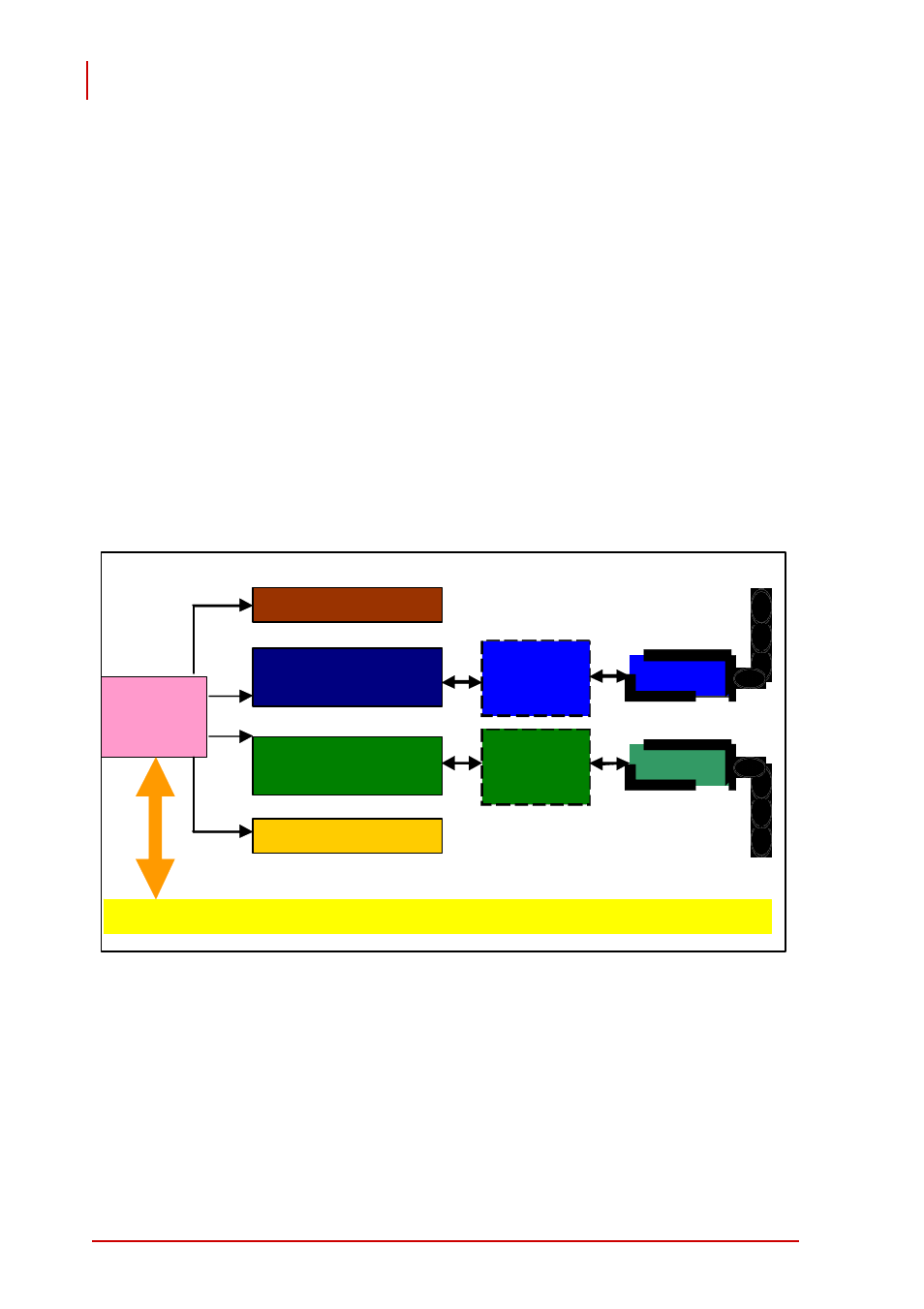

The PCI-7856 block diagram is as follows.
Figure 1-1: PCI-7856 Block Diagram
PCI Bridge
FRAM
HSL Master
Controller
CPLD
MRJ45
HSL
Transceiver
IF Circuit
MNET
Transceiver
IF Circuit
Motionnet Master
Controller
HRJ45
Motionnet
Topology
HSL
Topology
PCI BUS
