Installation 9
PCI-7856
User’s Manual

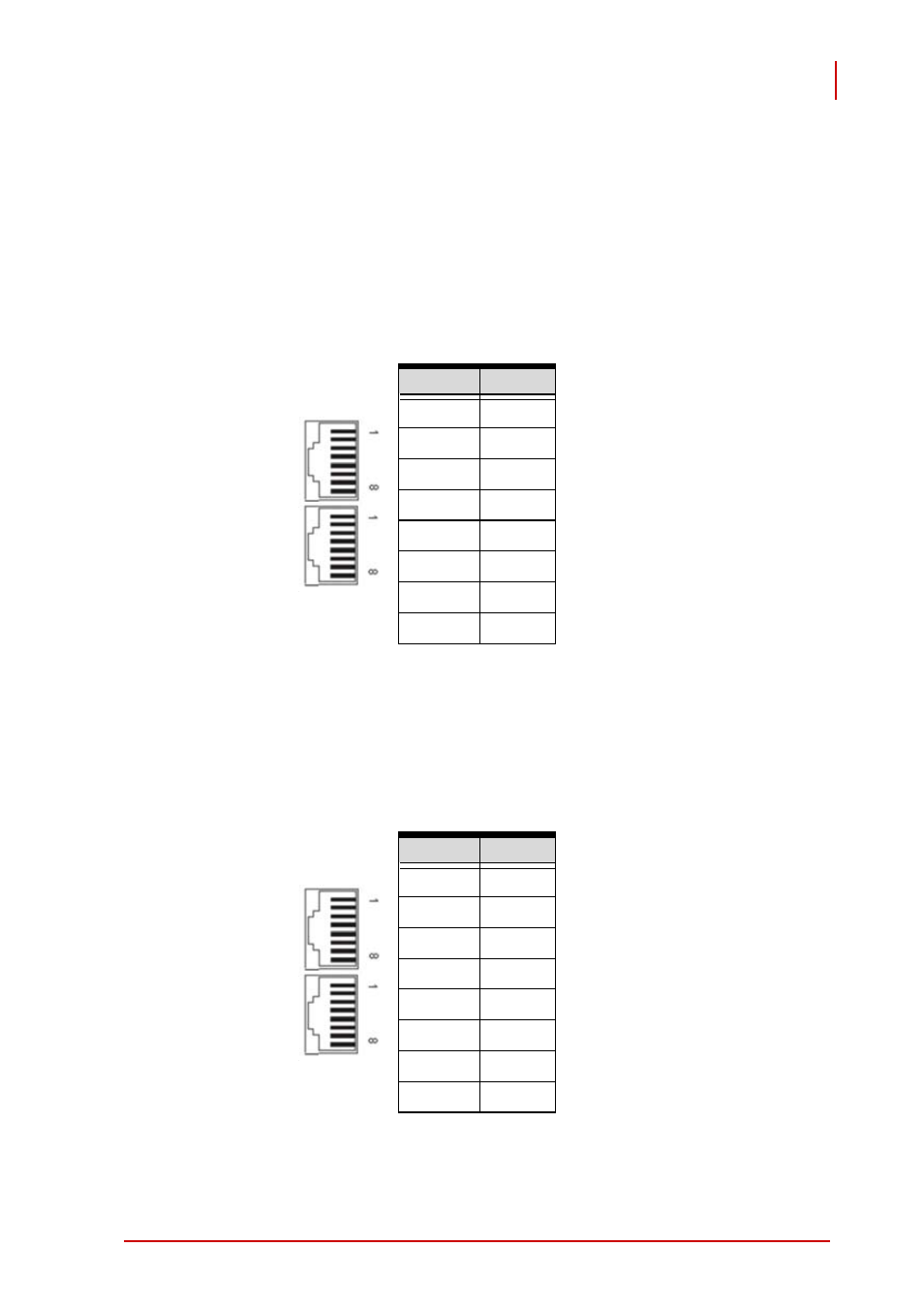

2.4.2 RJ45 Pin Assignment and LED Indicator
The Motionnet master is the key component in charge of commu-
nicating with slave motion and I/O modules. The master sets com-
mands to control slave motion controller or obtain the motion
status from slave modules. The PCI-7856 provides two ports of
Motionnet master connection for more flexibility wiring. The pin
assignment of the MRJ45 connector on the PCI-7856 is listed as
below:
The HSL master is the key component in charge of communicat-
ing with slave I/O modules. The master sets output values to and
gathers input information from slaves. PCI-7856 provides two
ports for HSL master connections for more flexibility wiring. The
pin assignment of the HRJ45 connector on the PCI-7856 is as
listed below:
Pin No. Pinout
1
NC
2 NC
3 NC
4 Data-
5 Data+
6 NC
7 NC
8 NC
Pin No. Pinout
1
NC
2 NC
3 RX+
4 TX-
5 TX+
6 RX-
7 NC
8 NC
