50 HSL Slave Modules
PCI-7856 
User’s Manual
Condition 2
HSL-AI16AO2-VV×1 operates at 12 Mbps.
We recommended that you use the provided slave index configu-
ration.

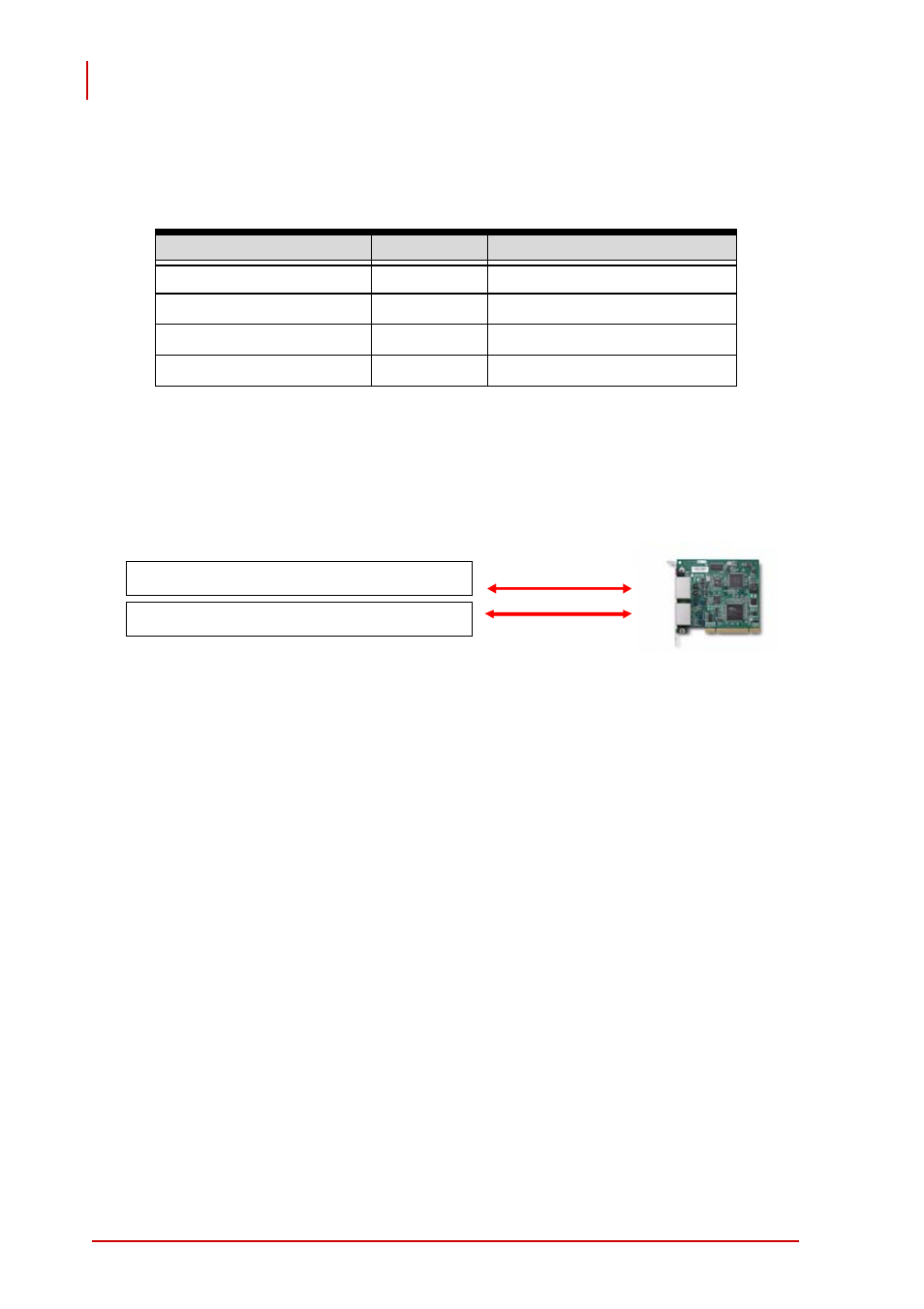

There is another example of a compact composition. The scan
time needs 30.33 µs x 6 at 6 Mbps, full duplex mode. You may
connect these modules with one master controller. The HSL-
AI16AO2-M-VV module connects to another master controller.
The DIP switch of HSL-AI6AO2-M-VV is assigned as 1.
Consequently, the cycle time of the first master controller is 30.33
µs x 6 and the cycle time of the second master controller is 45.5
µs at 12 Mbps, full duplex mode.
Item DIP Switch Index Occupation in HSL
HSL-DI32-M-N #1 1 1, 2
HSL-DI32-M-N #2 3 3, 4
HSL-DI16DO16-UD #1 5 5
HSL-DI16DO16-UD #2 6 6
HSL-D16DO2-UL ×2, HSL-DI32-UD x 2
HSL-AI16AO2-M-VV
12 Mbps
6 Mbps
