18 • Installation
D/A CH1 is External
D/A CH2 is External
JP4(PCI-9112, cPCI-9112R)
JP5(cPCI-9112)
INTREF
ExtRef2 ExtRef1
INTREF
D/A CH1 is Internal
D/A CH2 is Internal
(default setting)
D/A CH1 is Internal
D/A CH2 is External
D/A CH1 is External
D/A CH2 is Internal
INTREF
ExtRef2 ExtRef1
INTREF
INTREF
ExtRef2 ExtRef1
INTREF
INTREF
ExtRef2 ExtRef1
INTREF

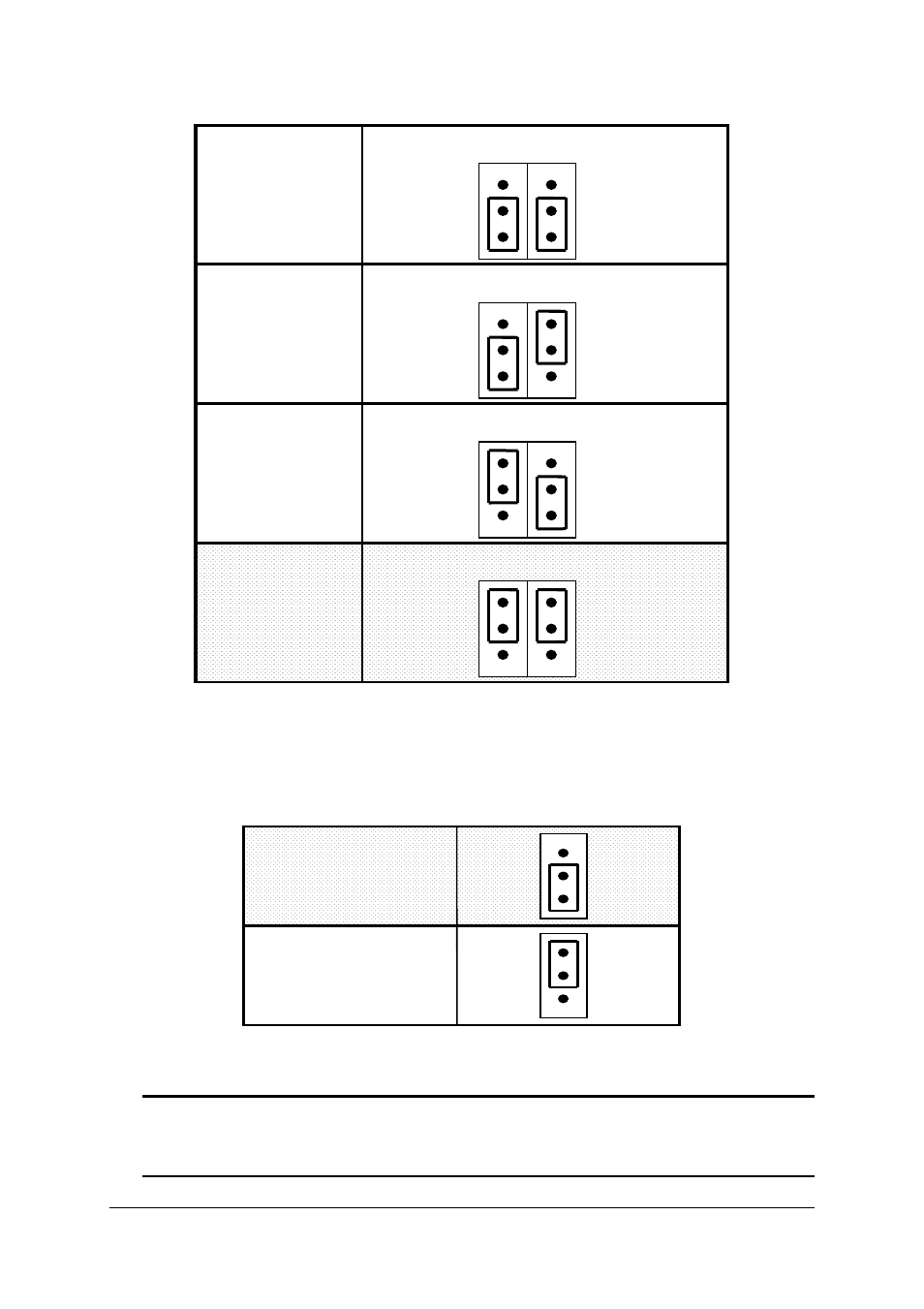

Figure 2.6 Analog Output Voltage Setting
The internal D/A reference voltage can be set to –5V or –10V by JP3. The
possible configurations are specified as Figure 2.7. Note that the internal
reference voltage is used only when the JP4 is set to internal reference only.
R eference Voltage is
-5V (default setting)
J P 3
-10V
-5V
J P 3
-10V
-5V
R eference Voltage is
-10V
Figure 2.7 Internal Reference Voltage Setting
Note: If the -10V D/A reference voltage is selected, the D/A output range is
0V~10V. On the other hand, if the -5V is selected, the D/A output
range is 0V~5V.
